FOR SALE: ALBERTA USED / SURPLUS TRANSFER PUMP PACKAGES – CJV1923

Up to 500 m3/d and 360 psi Transfer Pump Packages

Low cost oil or water transfer packages that pump up to 500 m3/day and 360 psi discharge pressure for less than $25k.

If you need to move some oil or water around, or if you have a small disposal site that doesn’t need much pressure, here is a great pump for you. Built by Crimtech in 2007 and only run for a couple of years, each package features a small Seepex progressive cavity pump, sour rated 300# piping c/w mass flow meter, ESD, and various shut downs. Currently hydraulic driven, these can be optionally converted to electric driven. They are all housed inside little 9’ x 7′ buildings with checker plate flooring, Catadyne heat, and a sump.

34

UNITS AVAILABLE
Flow & pressure - used / surplus water transfer or oil transfer pump packages for sale in Alberta
Extras - used / surplus water transfer or oil transfer pump packages for sale in Alberta
Housed - used / surplus water transfer or oil transfer pump packages for sale in Alberta
Pumps - used / surplus water transfer or oil transfer pump packages for sale in Alberta
Price - used / surplus water transfer or oil transfer pump packages for sale in Alberta

Watch below as Kameron Anderson guides you through these undervalued pump packages.

TRANSFER PUMP PACKAGES QUICK LINKS

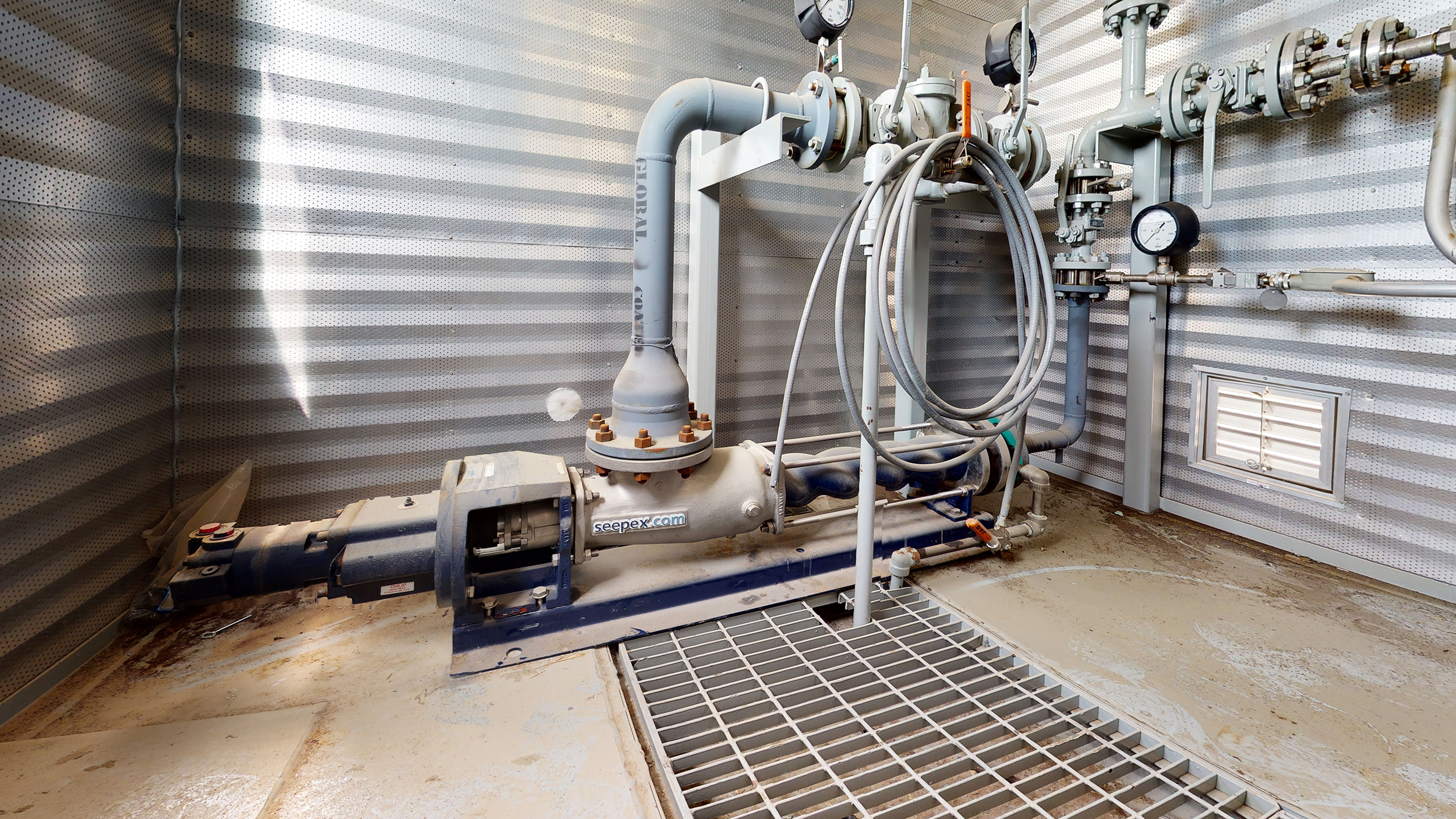

Interior 1 - used / surplus water transfer or oil transfer pump packages for sale in Alberta

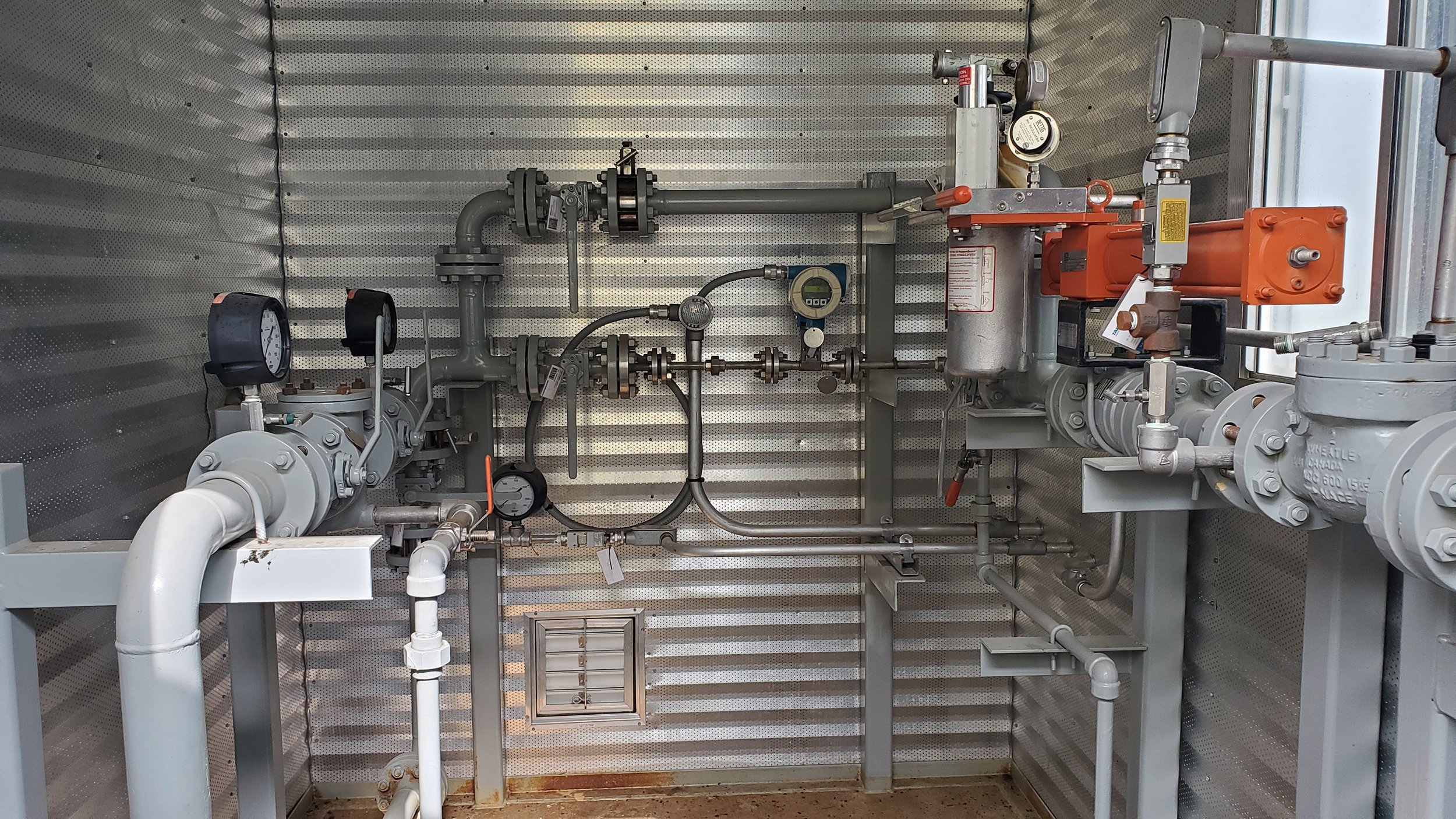

Interior 3 - used / surplus water transfer or oil transfer pump packages for sale in Alberta

Extra Value in Each Package

To manufacture a new, basic pump package that would do similar flow/pressure would cost between $30k-40k. but it wouldn’t have this much instrumentation like an ESD, flow meter, bypass etc. With these you can have every one for between $12k—25k each depending on what pump model you want (BN5, 17 or 34) and condition of package overall. You can take four of them on a truck at a time, so shipping is easy and cheap.

Hydraulically Powered.
Optionally Converts to Electric.

You’ll need a hydraulic power package to run these. Again, we can convert these to electric if you want (watch video below), but typically oil companies will have several of these in their inventory – If not, they are laying all over the country and are reliable, simple, and cheap to overhaul.

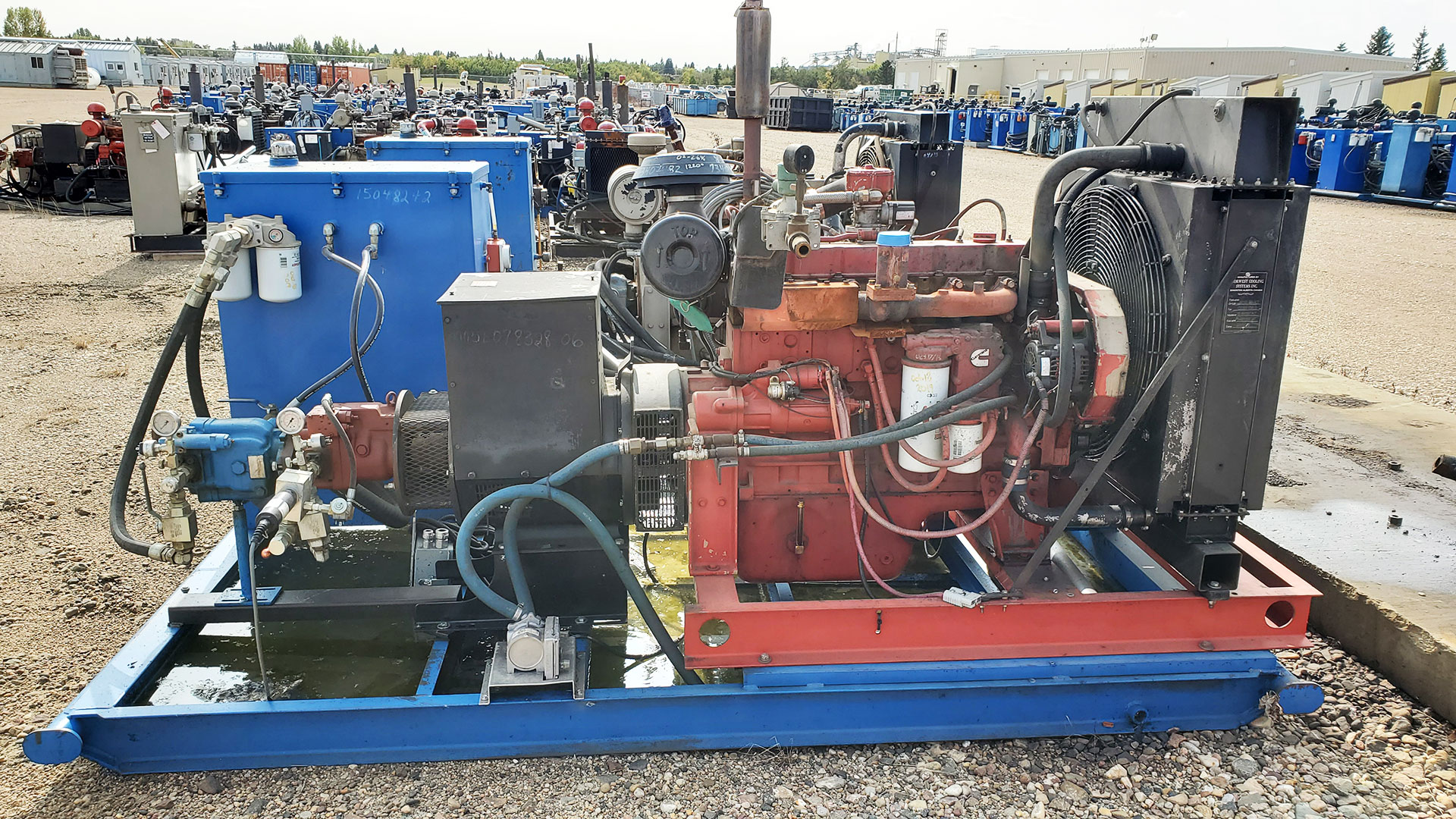

Hydraulic Power Pack - used / surplus water transfer or oil transfer pump packages for sale in Alberta

General Equipment Configuration

Components vary from package to package depending on the removal of parts by the operator.

Package Overview Crimtech Services 2007
Designed for up to 285psi Inlet pressure, 300# Discharge Pressure
One (1) SEEPEX BN5 OR BN17 Progressive cavity pump
One (1) Gear Style Hydraulic motor direct drive to PC pump inc. male & female direct quick couplers. Optionally can convert to electric driven.
Piping & Instrumentation 3” basket strainer (w/ drain to sump)
CCS dual snap pressure switches (PSHH 100, 101)
CCS dual snap temp switch (TSH 100)
1 x 1 Endress + Hauser vortex flow meter w/ bypass
Hydraulic actuated, Bettis ESD control valve
Skid edge piping connection: 3” 150# Inlet, 2” 600# Discharge, 1” Drains
Building 9’ L x 7’ W x 9’ H Shed Style building w/ ice rakes, eaves and downspouts
One (1) Single Man door with window
One (1) Catadyne Heater
Suction piping, basket strainer, and discharge piping piped with 1” pipe to floor Sump with grating
Weighted louvers
End devices wired to JB’s
Pricing & Availability Located in Lloydminster, Alberta
Variety of Seepex BN5 and BN17 Models.
Price variance is based on visual condition and model of pump.
Price Range ~$12-18k for BN5; $16-22k for BN17
“As Is, Where Is”
Parts availability is good (stock to 2 weeks, local supplier).

Drawings

Download the PID (Seepex BN5 pump model – general configuration applies to all units) for these hydraulic-driven transfer pump packages.

Download Drawings
IronHub logo

Browse All Available Units on IronHub

Each of these oil transfer & water transfer pump packages can be browsed on IronHub’s website. Don’t hesitate to reach out to us if you have any questions.

Browse Available Units on IronHub

IronHub Item #

Service

Pump Model

16804 Sweet BN17-12V
16805 Sweet BN17-12V
16808 Sweet BN5-12V
16845 Sweet BN5-12V
16846 Sweet BN5-12V
16847 Sweet BN5-12V
16848 Sweet BN5-12V
16849 Sweet BN5-12V
16850 Sweet BN5-12V
16851 Sweet BN5-12V
16852 Sweet BN5-12V
17966 Sour BN17-12V
17970 Sweet BN17-12V
17971 Sour BN17-12V
18087 Sweet BN17-12V
18099 Sweet BN17-12V
18119 Sour BN17-12V
18120 Sour BN17-12V
18121 Sweet BN17-12V
18122 Sour BN17-12V
18123 Sour BN17-12V
18124 Sweet BN17-12V
18125 Sweet BN17-12V
18126 Sweet BN17-12V
18215 Sweet BN17-12V
18259 Sour BN5-12V
18260 Sour BN5-12V
18261 Sour BN5-12V
18262 Sour BN5-12V
18836 Sweet BN5-12V
19055 Sweet BN5-12V
19056 Sweet BN5-12V
19057 Sour BN5-12V
19133 Sweet BN5-12V

INVENTORY LAST UPDATED – February 2, 2021

Photo Gallery

Additional photos of these transfer pump packages are available upon request.

360º Virtual Tour

Explore one of these packages in high-detail below. Note that this scanned unit has some instrumentation removed.

How to Read a SEEPEX Pump Curve

Watch below as Kameron Anderson demonstrates how to interpret pump curves on these Seepex pumps and accurately size the pump to your requirements.

Download Pump Curve PDFs:

Seepex BN5 Pump Curve | Seepex BN17 Pump Curve | Seepex BN35 Pump Curve

Feature Sheets

Download these oil transfer / water transfer pump pacakge details as a PDF – with the option of an unbranded version to share with your network.

Crusader Version

Branded feature sheet - used / surplus water transfer or oil transfer pump packages for sale in Alberta
Download Crusader Branded PDF

Unbranded Version

Unbranded feature sheet - used / surplus water transfer or oil transfer pump packages for sale in Alberta
Download Unbranded PDF

Inquiries

Call us at 403-819-3906 or fill out the form below to discuss these for sale used water transfer & oil transfer pump packages.

  •
