Used Two (2x) 50 TPH PETROLITE BAKER FO (Furnace Oil / Fuel Oil) Treatment Plants – Electrostatic Separation & Heating Systems CJV-U586-FO

Description

For Sale: 2 x 50 TPH Furnace Oil / Fuel Oil Treatment Plants

Two complete PETROLITE BAKER Fuel Oil Treatment Plants (FOTP) are available for sale as part of a larger portfolio of surplus utility-scale power generation assets.

The two treatment trains share the same specifications and were originally installed in 1985 for treatment of water-soluble salts, specifically sodium and potassium (Na+K), in Furnace Oil / Fuel Oil (FO).

Each train has a nominal treatment capacity of 50 tonnes/hour and operates using electrostatic separation. The system is designed for an inlet Na+K concentration of up to 50 ppm, with an indicated treated-fuel oil outlet specification of <0.50 ppm Na+K as per Gas Turbine Fuel Oil Standard.

The fuel oil treatment facilities include electrostatic separator vessels, oil and water pumping systems, chemical dosing equipment, steam and thermal-oil heating systems, heat exchangers, oily-water separation equipment, controls, and associated auxiliaries.

These assets were installed as part of a large 50 Hz, multi-fuel combined-cycle power generation facility capable of operating on natural gas, HSD and furnace oil/fuel oil.

Key Specifications

• Equipment: Furnace Oil / Fuel Oil Treatment Plants (FOTP)
• Quantity: 2 complete treatment trains
• OEM: PETROLITE BAKER
• Year: 1985
• Capacity: 50 tonnes/hour per train
• Combined Nominal Capacity: 100 tonnes/hour
• Fuel: Furnace / Fuel Oil (FO)
• Treatment Principle: Electrostatic separation
• Na+K Inlet Limit: 50 ppm
• Na+K Outlet Limit: <0.50 ppm
• Fuel Heating: Steam heat exchangers and thermal-oil heating systems

Major Equipment – Per FOTP Train

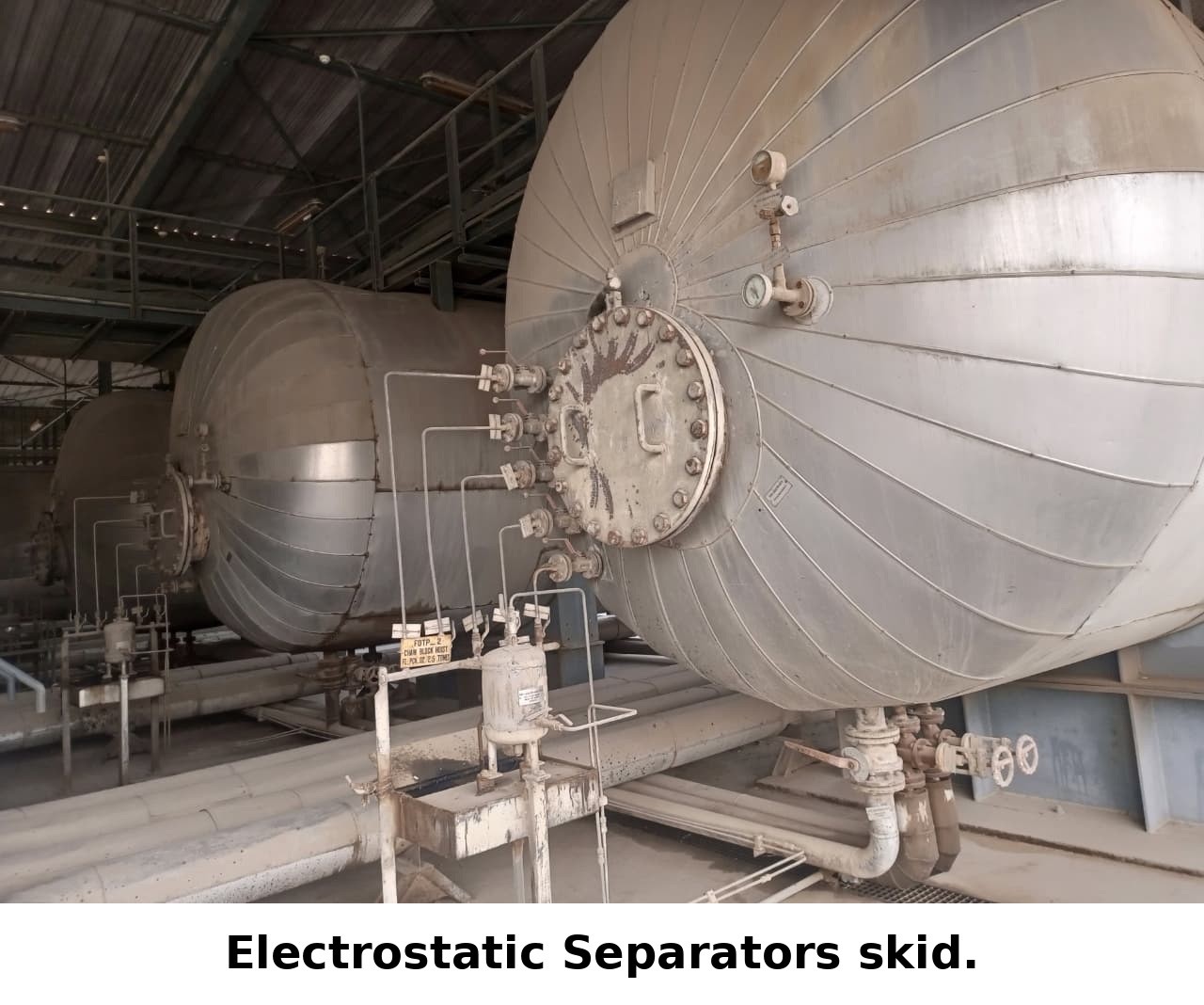

Electrostatic Separation

• 3 x separator vessels
• Capacity: 90 m³/hr
• Working pressure: 10 bar
• Working temperature: 135°C
• Manufacturer: SPERLING

Oil & Water Pumping

• 4 x screw-type oil pumps
  • Capacity: 70–80 m³/hr
  • ALLWEILER / HOUTTUIN
• 1 x internal recirculating centrifugal pump
  • Capacity: 22 m³/hr
  • ALLWEILER
• 2 x centrifugal water pumps
  • Capacity: 2.5–5.0 m³/hr
  • ALLWEILER
• 1 x centrifugal pump-out pump
  • Capacity: 6 m³/hr
  • ALLWEILER
• 4 x centrifugal recirculation pumps
  • Capacity: 2.5–5.0 m³/hr
  • ALLWEILER

Fuel Heating & Heat Recovery Systems

Steam Heat Exchanger

• 1 x shell-and-tube AEU heat exchanger
• Working pressure: 10 bar
• Design pressure: 13 bar
• Temperature: 185°C
• Corrosion allowance: 3.2
• Manufacturer: DESCON Engineering Ltd.
• Year: 2015

Plate Heat Exchangers

SONDEX PHE S47-IS

• 1 x plate-type heat exchanger
• Flow: 140,157 L/hr
• Maximum working pressure: 16.30 bar
• Maximum working temperature: 140°C
• Manufacturer: SONDEX A/S, Denmark

GEA AHLBORN

• 1 x plate-type heat exchanger
• Pressure: 12.3 bar
• Temperature: 130°C
• Capacity: 5.38 litres
• Manufacturer: GEA AHLBORN GmbH & Co.

Thermal Oil System

• 1 x thermal oil heater
  • Working pressure: 13 bar
  • Working temperature: 320°C
  • Flow: 170 m³/hr
  • Manufacturer: Bertrams, Switzerland
  • Year: 1985
• 2 x shell-and-tube thermal oil heat exchangers
• 2 x centrifugal thermal oil circulating pumps
  • Flow: 170 m³/hr
  • Head: 55 m
  • Operating pressure: 6 bar
  • Operating temperature: 200°C
  • Manufacturer: ALLWEILER
• 1 x thermal oil fill and drain pump
  • Flow: 3.5 m³/hr
  • Head: 59 m
  • Operating pressure: 6 bar
  • Operating temperature: 200°C
  • Manufacturer: SIHI

Oily-Water Treatment

The system also includes a DVZ oily-water separator and associated oily-water pumps, with indicated outlet performance of less than 15 ppm.

Associated Systems & Equipment

• Chemical dosing skid
• Oil pumping skid
• Fuel oil economizer skid

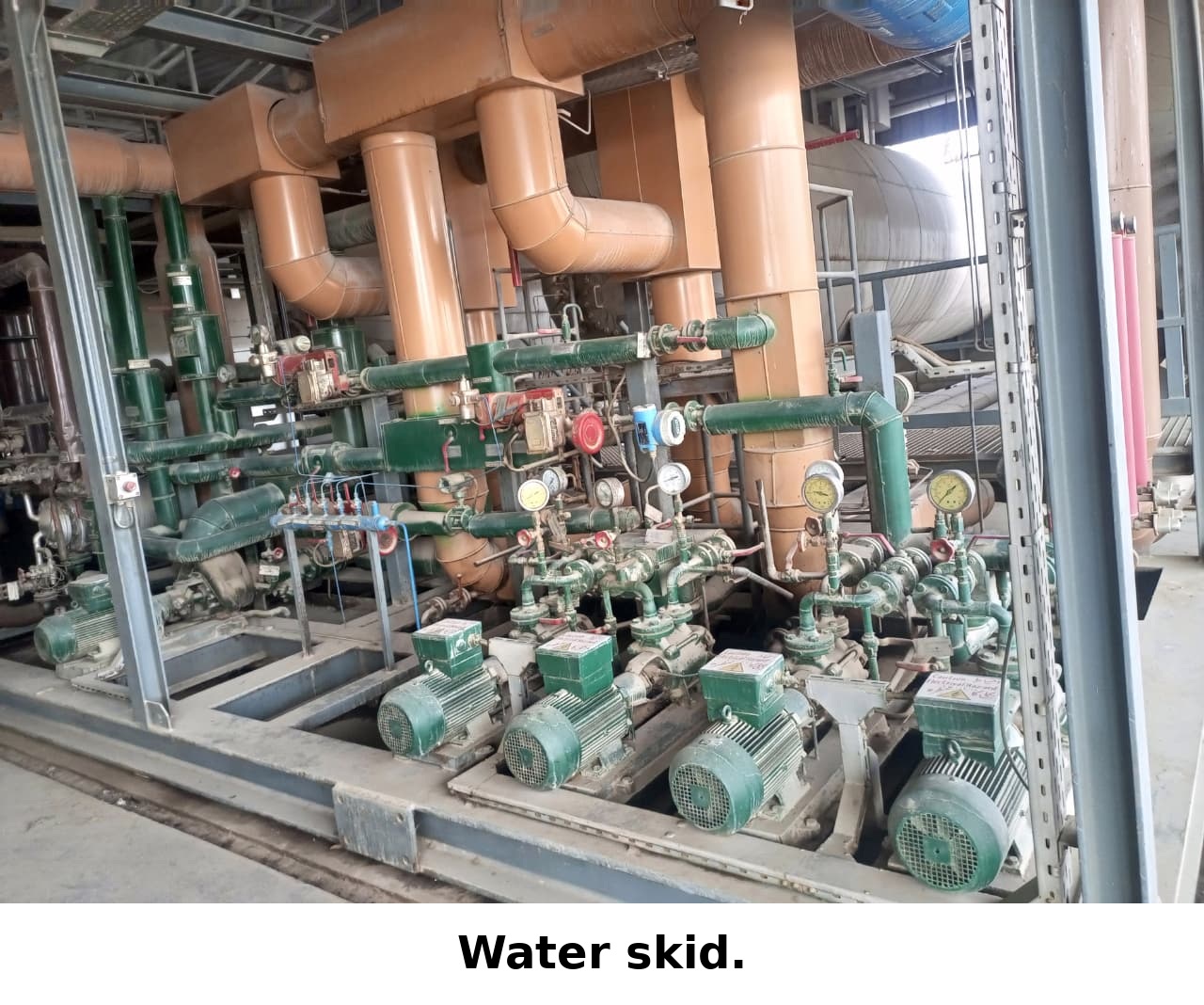

• Water skid
• Water heating skid
• Electrostatic separator skid
• Steam heat exchanger skid
• Thermal oil heater skid
• Oily-water treatment skid
• Control room and mimic/control panel
• Associated piping, pumps, instrumentation and auxiliaries

Power Plant Application

The fuel oil treatment system forms part of the same surplus asset portfolio as Crusader’s CJV-U586 50 Hz combined-cycle power generation assets, which include GE/Alstom Frame 9E and Siemens V94.2 gas turbines configured for multi-fuel operation.

The broader generation assets have capability for natural gas, HSD and furnace oil/fuel oil, making the FOTP system particularly relevant for buyers evaluating relocation or continued operation of utility-scale generating equipment requiring treated liquid-fuel capability.

Availability

The equipment is being offered from a major utility-scale power generation owner and remains associated with an installed power generation facility.

Detailed technical documentation, additional photographs, commercial terms, inspection arrangements, and specific location information are available to qualified prospective buyers upon request.

Availability is subject to prior sale and final seller approval.
