Never-Used AREVA 168 MVA 230/11 kV Power Transformer 50 Hz CJV-U586-TF

Description

A never-used AREVA 112/168 MVA power transformer is available for sale from a major power generation owner – see their Used 50 Hz GE/Alsthom Frame 9E Siemens V94.2 Tri-Fuel Turbine Generators CCPP Assets : HRSGs, STGs Transformers (~400+ MW SCGT / ~700+ MW Combined-Cycle) CJV-U586 listing here. Originally acquired and maintained as a strategic spare, the transformer has never been placed into service and has been preserved in storage under nitrogen in accordance with OEM recommendations.

Manufactured by AREVA (now part of GE Vernova), the transformer is rated 230/11 kV, 50 Hz and is supplied with an extensive inventory of original accessories, including bushings, radiators, cooling fans, conservator tank, piping, and 304 drums of unused transformer oil.

Key Specifications

• Equipment: Power Transformer
• Manufacturer: AREVA (now GE Vernova)
• Condition: Never used / preserved strategic spare
• Year of Manufacture: 2005
• Rated Power: 112/168 MVA
• Rated Voltage: 230/11 kV
• Frequency: 50 Hz
• Cooling: ONAN/ONAF
• Vector Group: YNd11
• Impedance Voltage: 14%
• No-Load Losses: 90 kW at 100% rated voltage
• Load Losses: 440 kW at 75°C, based on 168 MVA rating

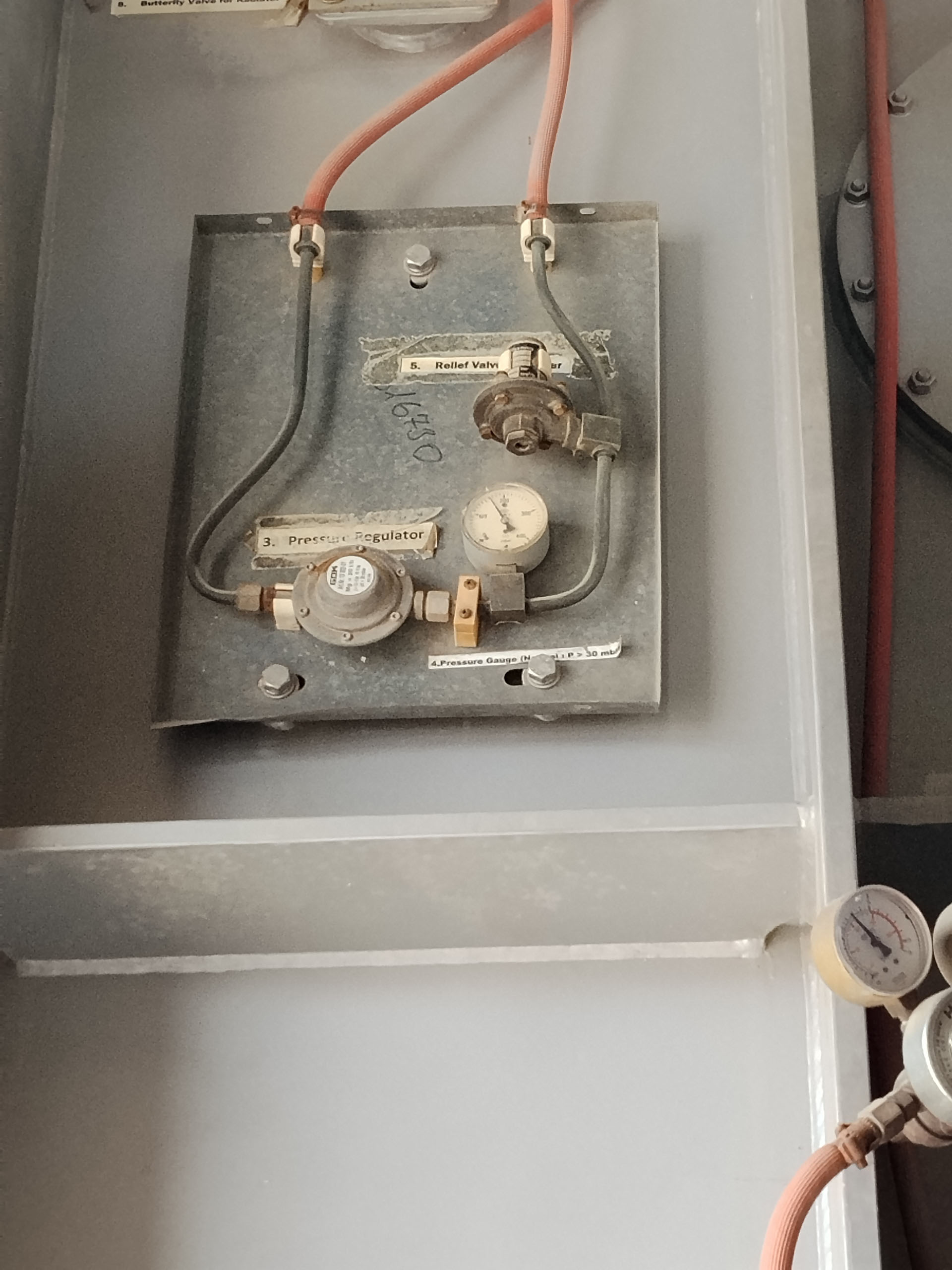

• Preservation: Stored under nitrogen in accordance with OEM recommendations

Included Accessories

• 4 x wheel assembly parts
• 1 x conservator tank
• 38 x radiators
• 3 x HV bushing housings
• 3 x LV bushing housings
• 1 x neutral bushing housing
• 3 x HV bushings
• 3 x LV bushings
• 1 x neutral bushing
• 19 x radiator fans
• 1 x set of piping
• 1 x set of accessories
• 304 x drums of unused transformer oil

Condition & Preservation

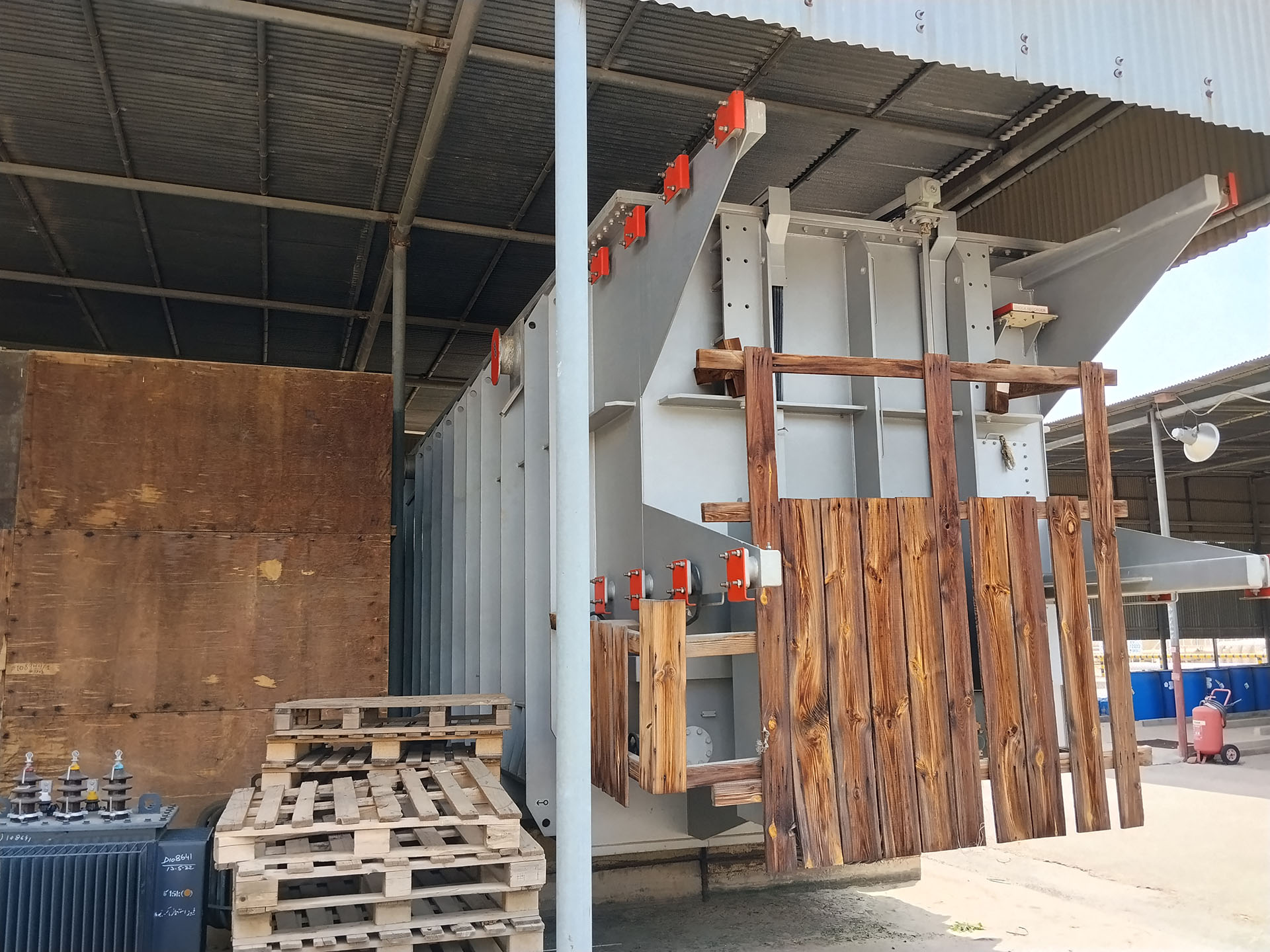

The transformer was acquired as a strategic spare and has never been energized or placed into commercial service. It has remained preserved in storage under nitrogen in accordance with OEM recommendations.

Detailed technical documentation and data sheets are available for qualified prospective buyers.

Availability is subject to prior sale and final seller approval. Additional information, commercial terms, inspection arrangements, and location details are available upon request.
