Weatherford W300 300HP Fully Refurbished Pump Package CJV-P136

Description

300 HP Weatherford W300 Pump Package

High-Level Specification

• Remanufactured 0-hour Weatherford W300-L pump with L fluid end
• 200 HP, 575V electric motor, upgradeable to suit application requirements
• 8″ 150# suction inlet
• 3″ 600# discharge outlet
• Sweet service configuration
• Ruffneck heaters
• Wired to junction boxes
• Allen-Bradley Micrologix PLC
• Inlet ESD valve

Overview

In today’s market of extended lead times and escalating pump prices, this refurbished Weatherford W300 package offers an attractive alternative. The core Weatherford W300-L pump has been fully remanufactured to zero-hour condition and reinstalled into the package, making it available for immediate purchase.

Because the unit remains at the fabrication facility, the final configuration can still be efficiently tailored before shipment. Whether the application is water injection, water disposal, LACT, or high-capacity oil transfer, the package provides a flexible foundation that can be customized to project requirements.

Core Package

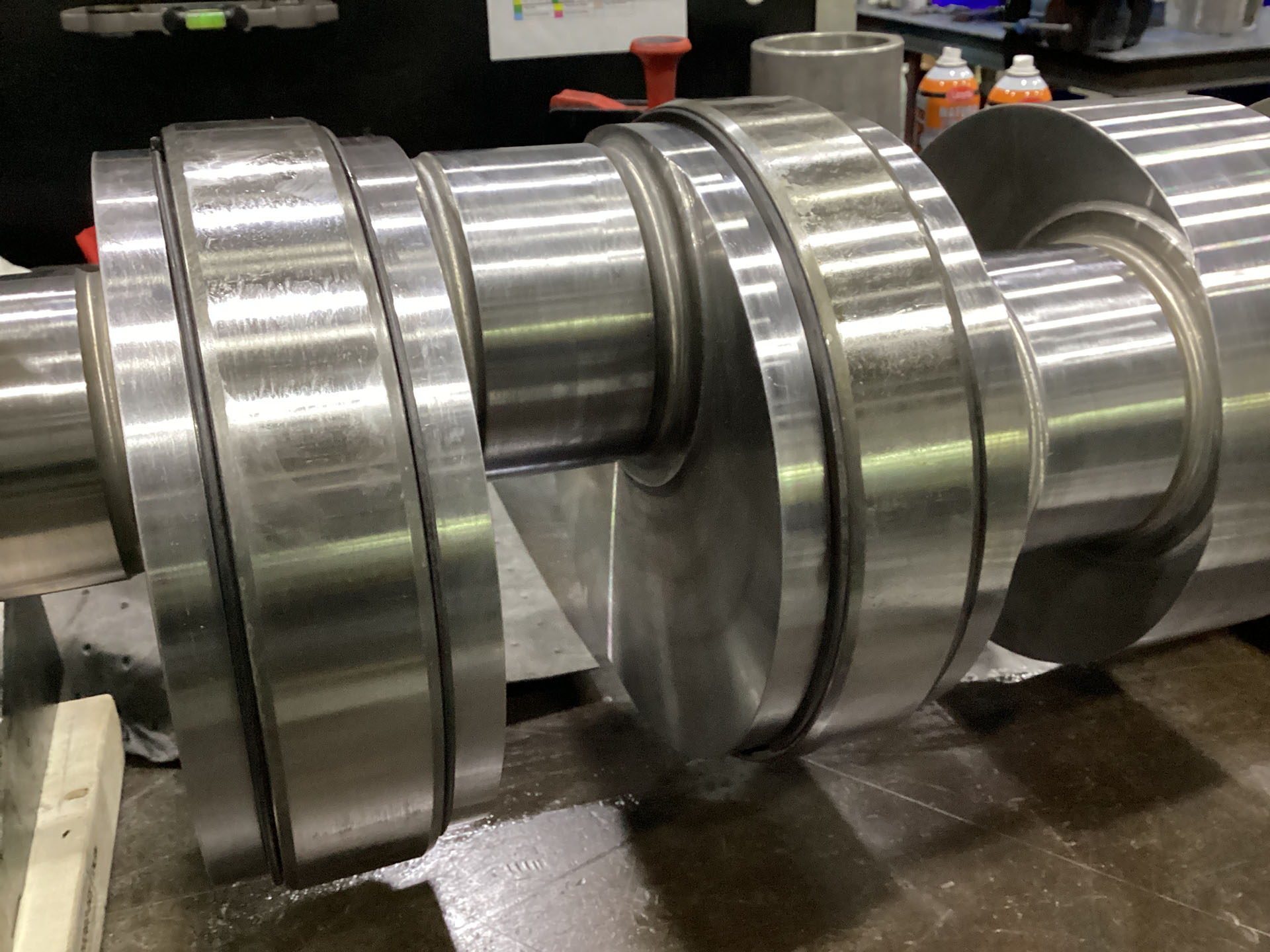

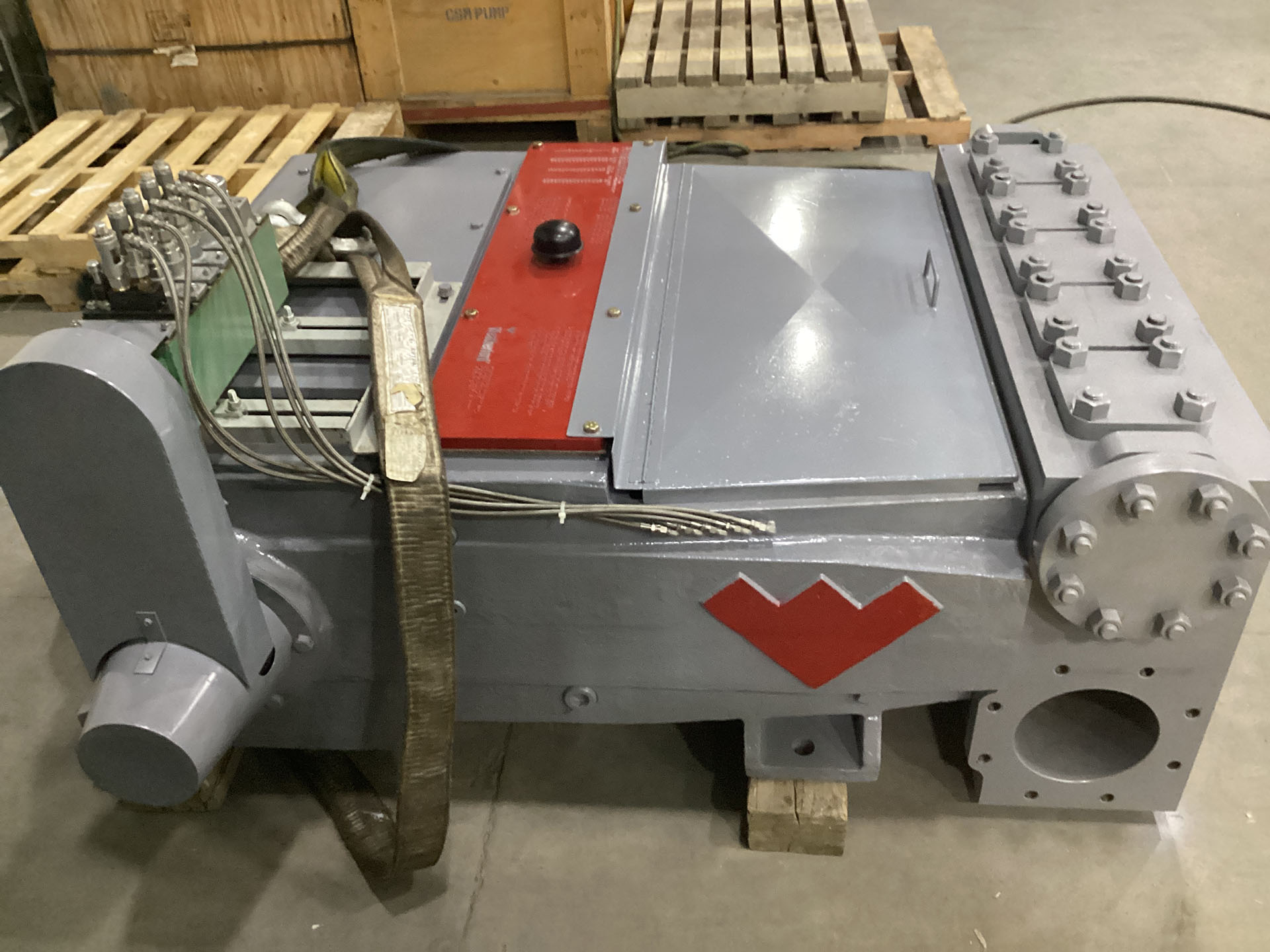

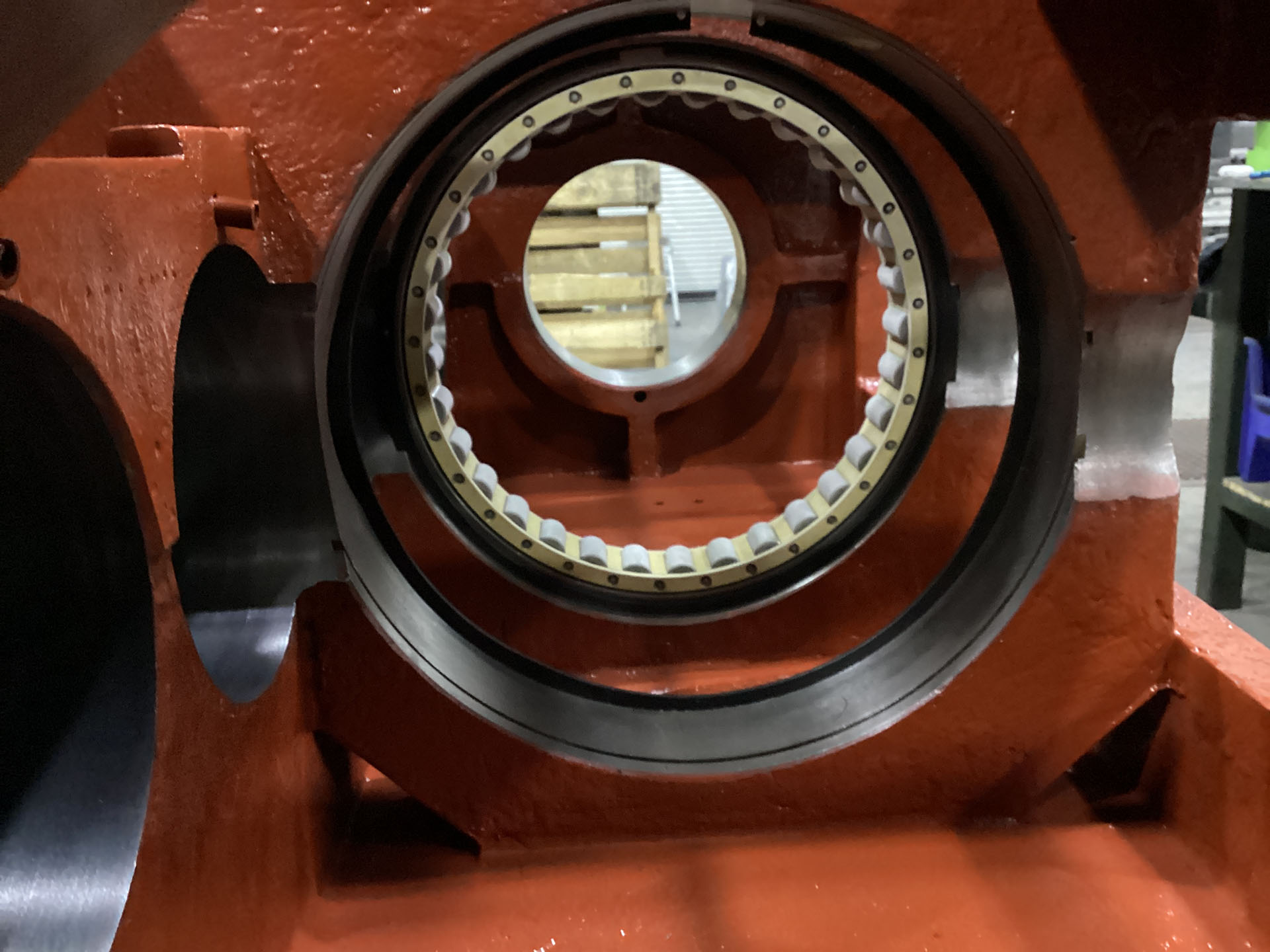

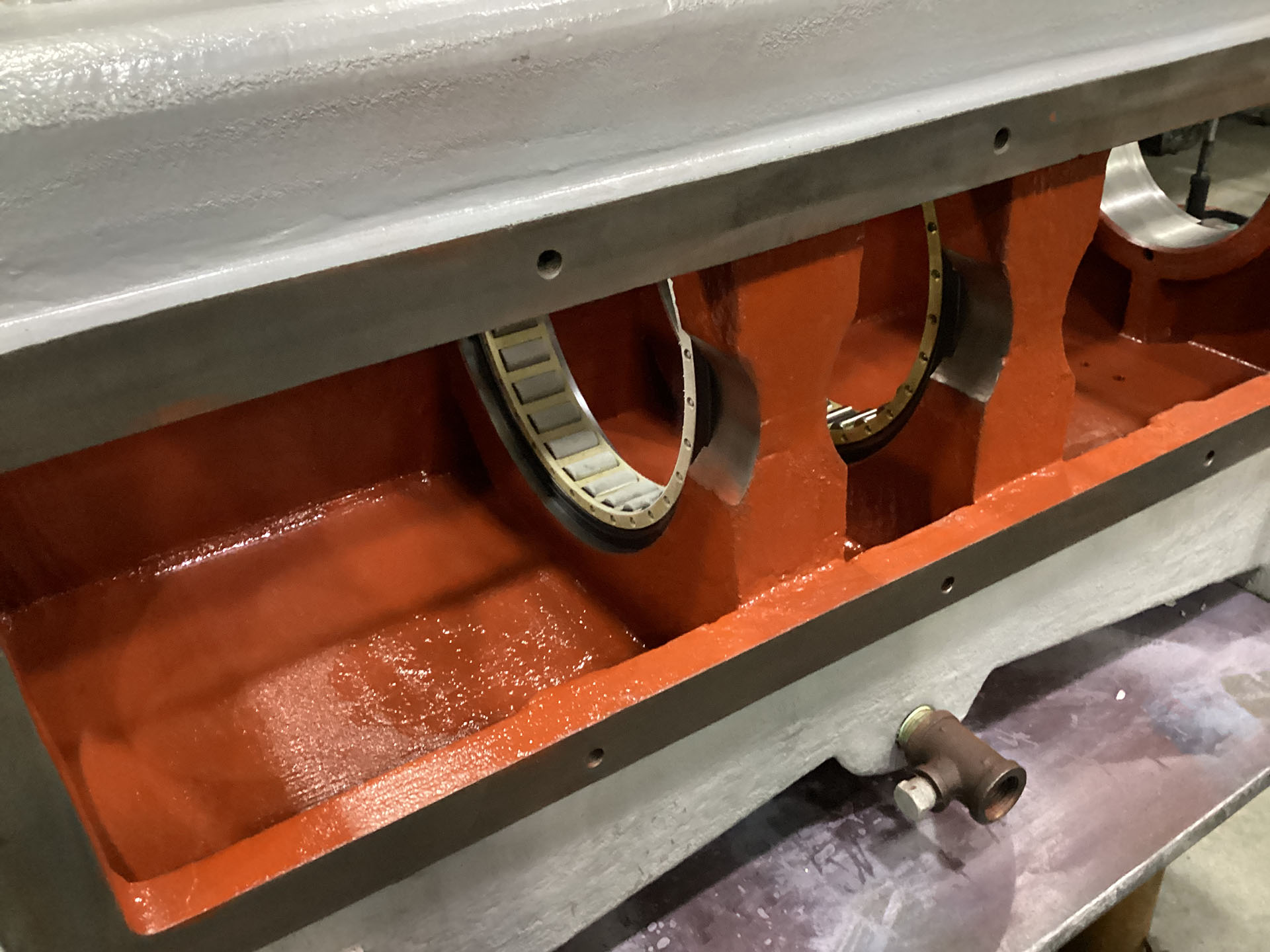

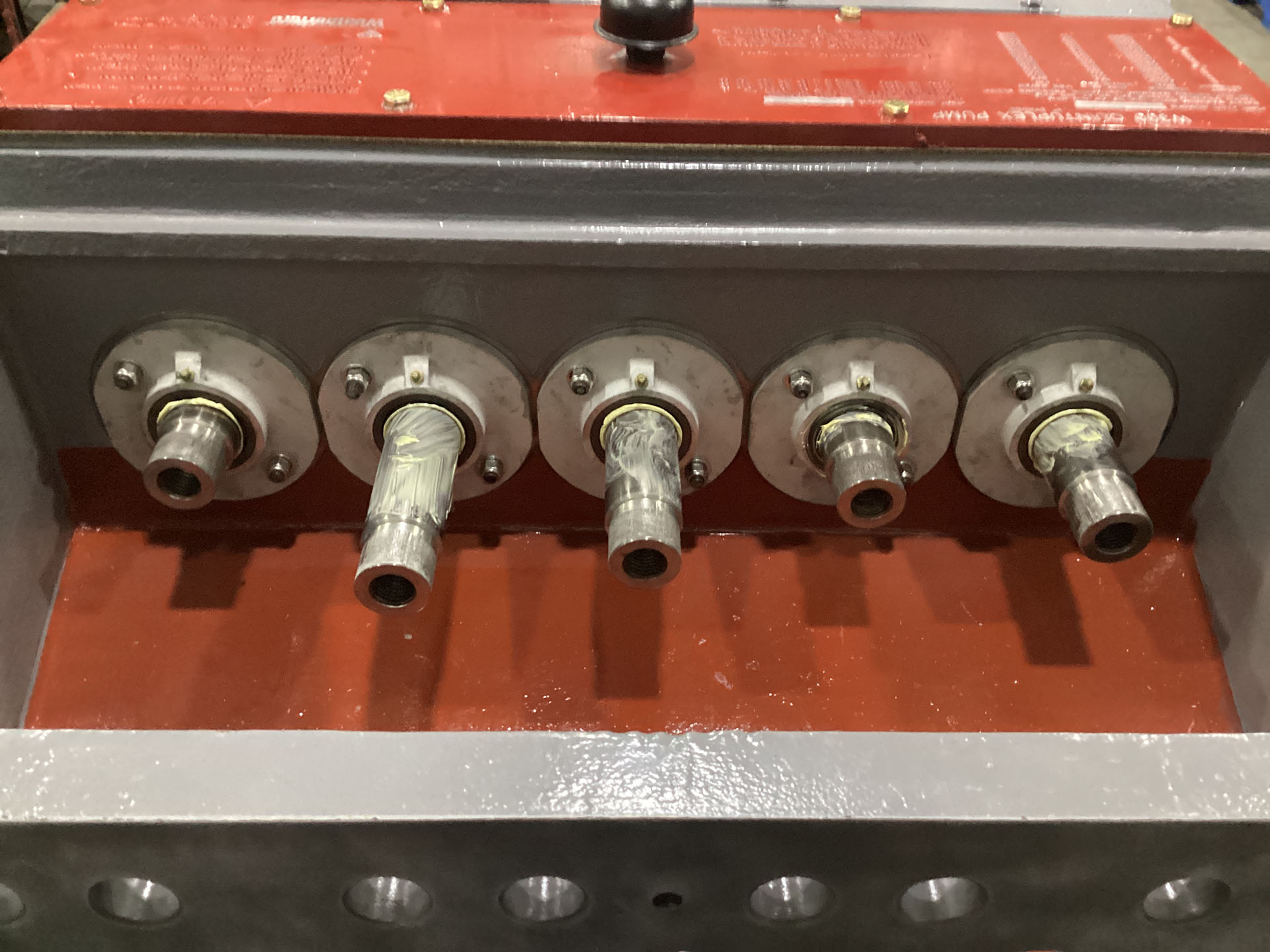

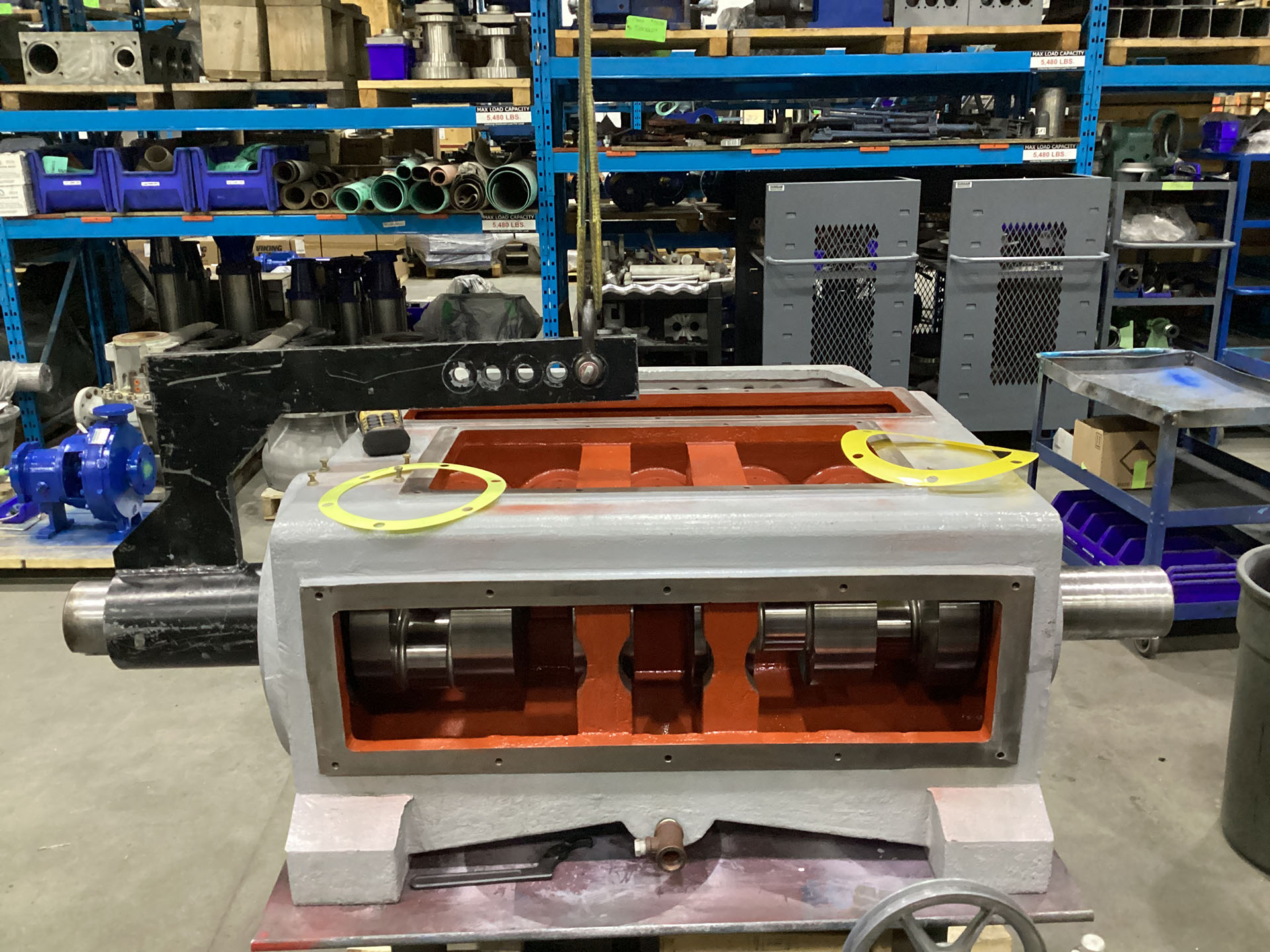

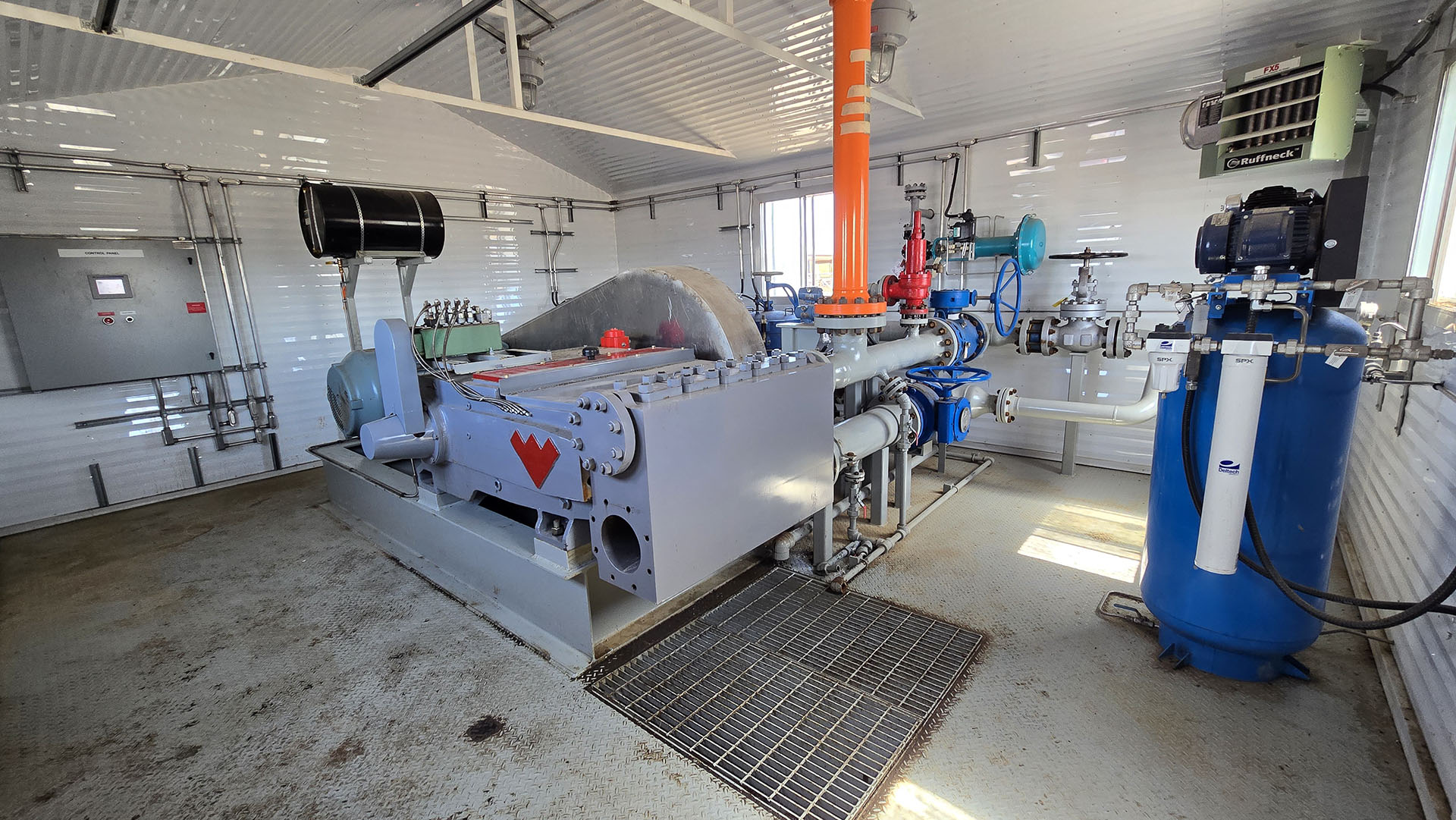

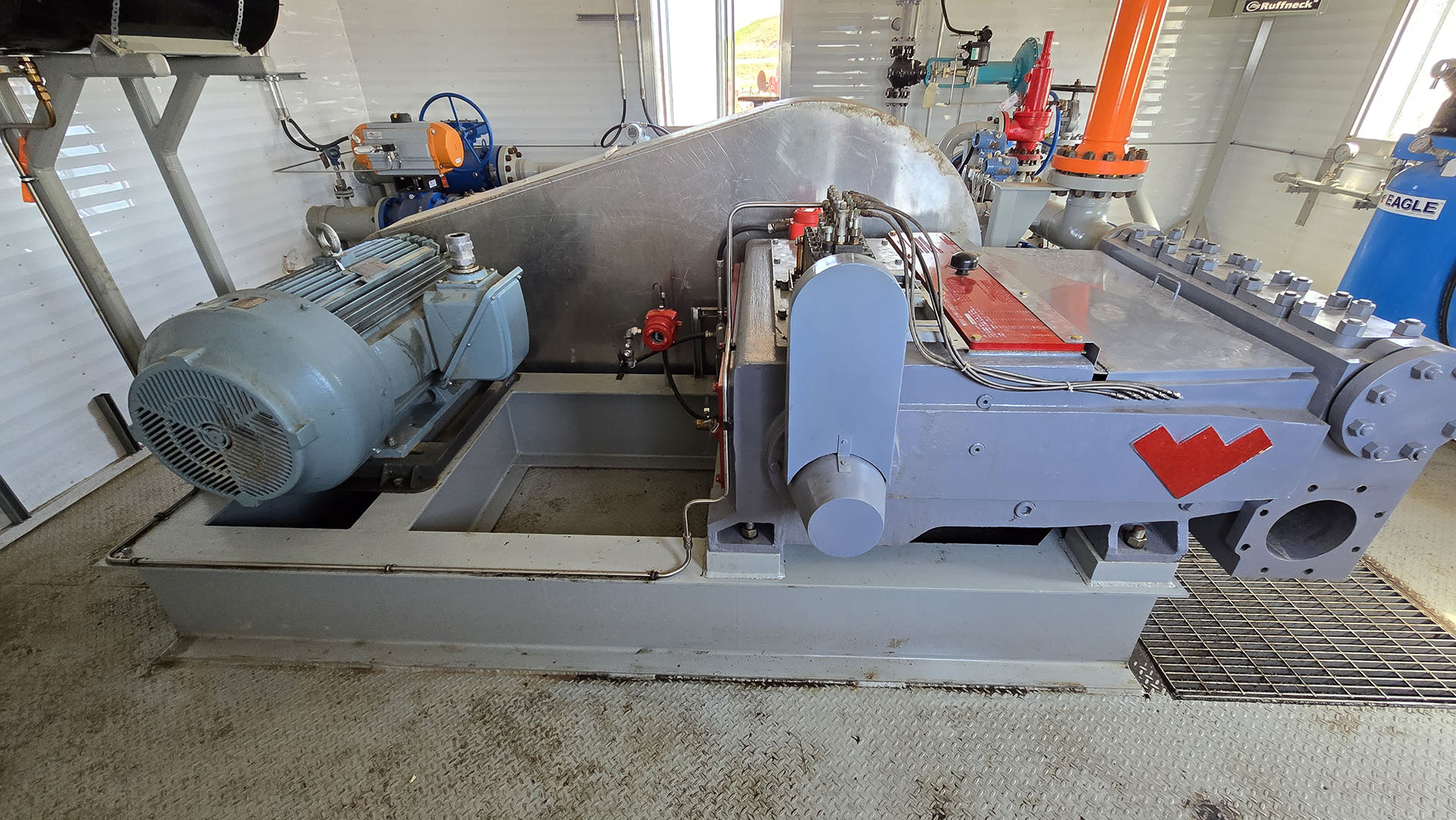

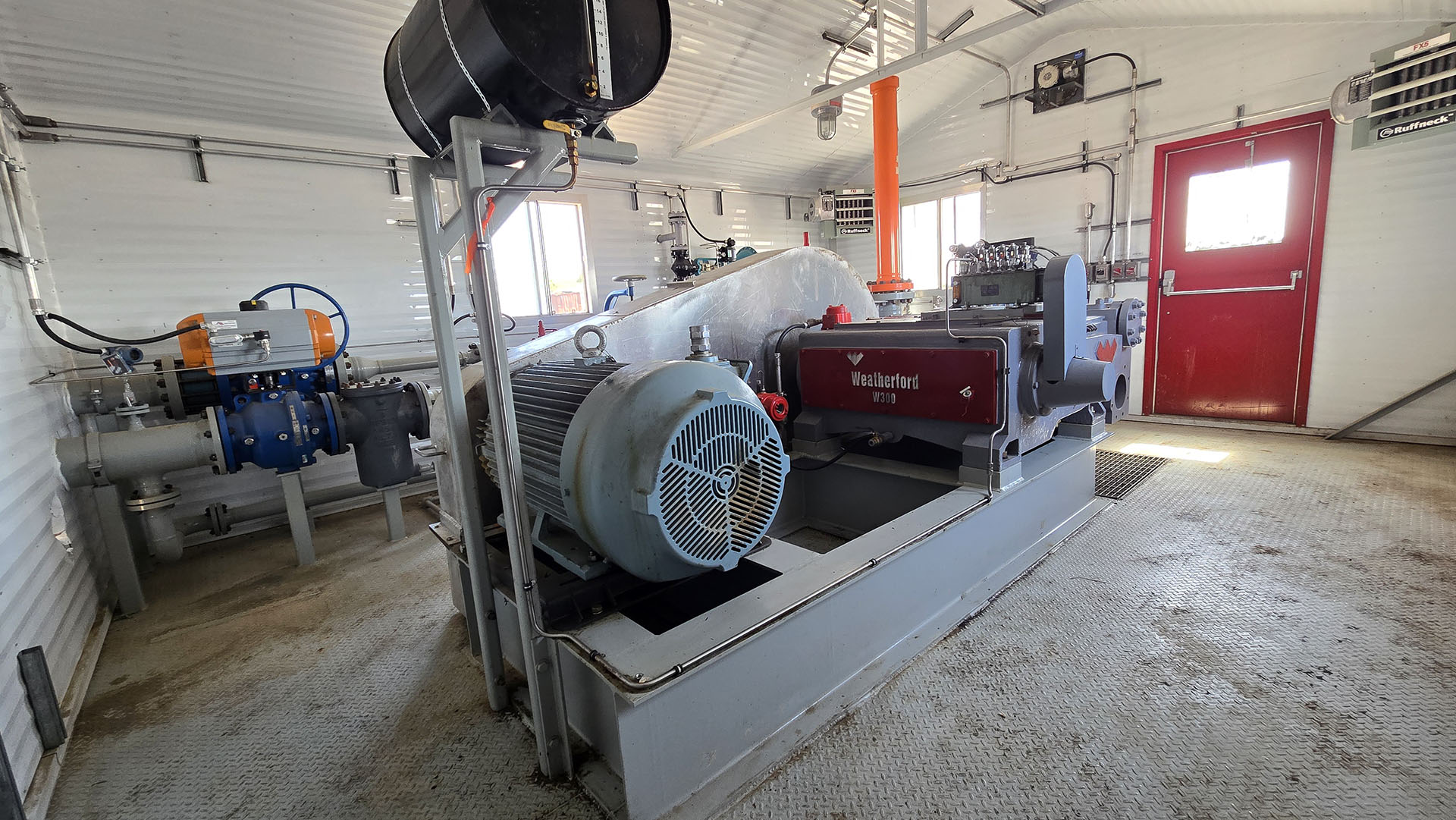

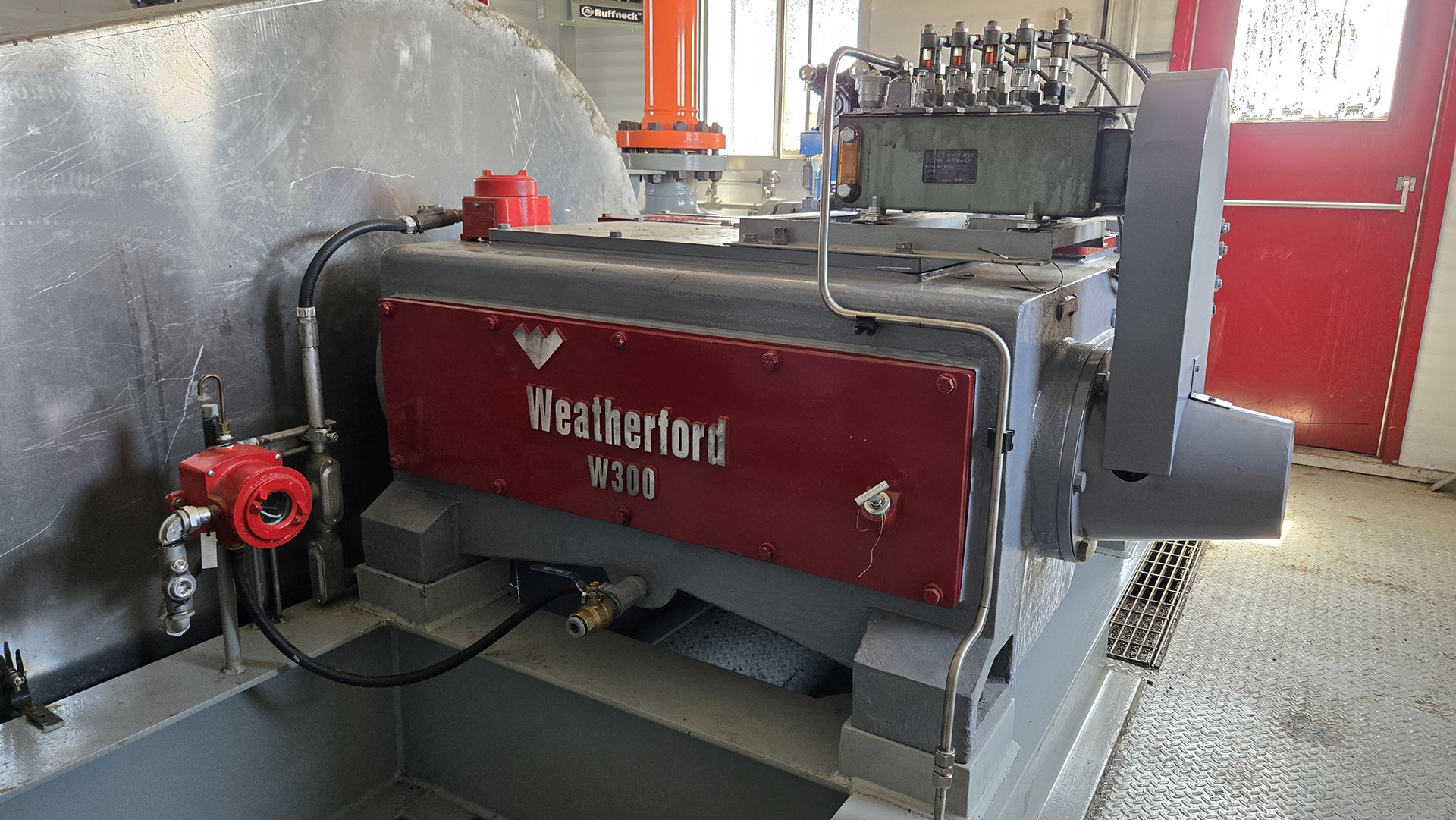

At the heart of the package is a remanufactured Weatherford W300-L pump featuring an L fluid end and designed for demanding service. The package is currently equipped with a 200 HP, 575V electric motor, which can be upgraded or modified to better suit the intended operating conditions.

The W300 platform is capable of approximately 3,000 m³/day at 1,000 PSI, or approximately 1,000 m³/day at 1,600 PSI.

Included Equipment

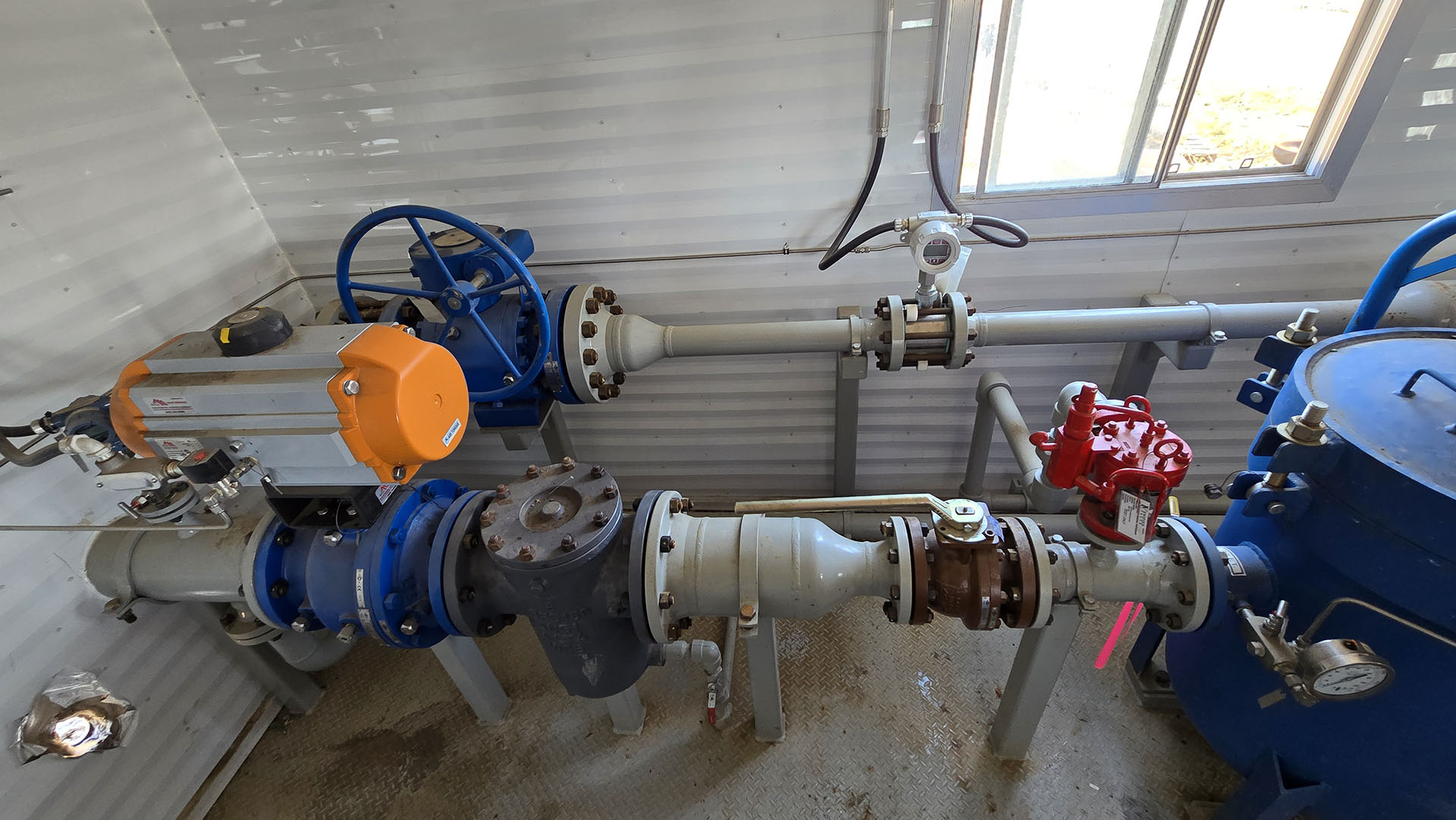

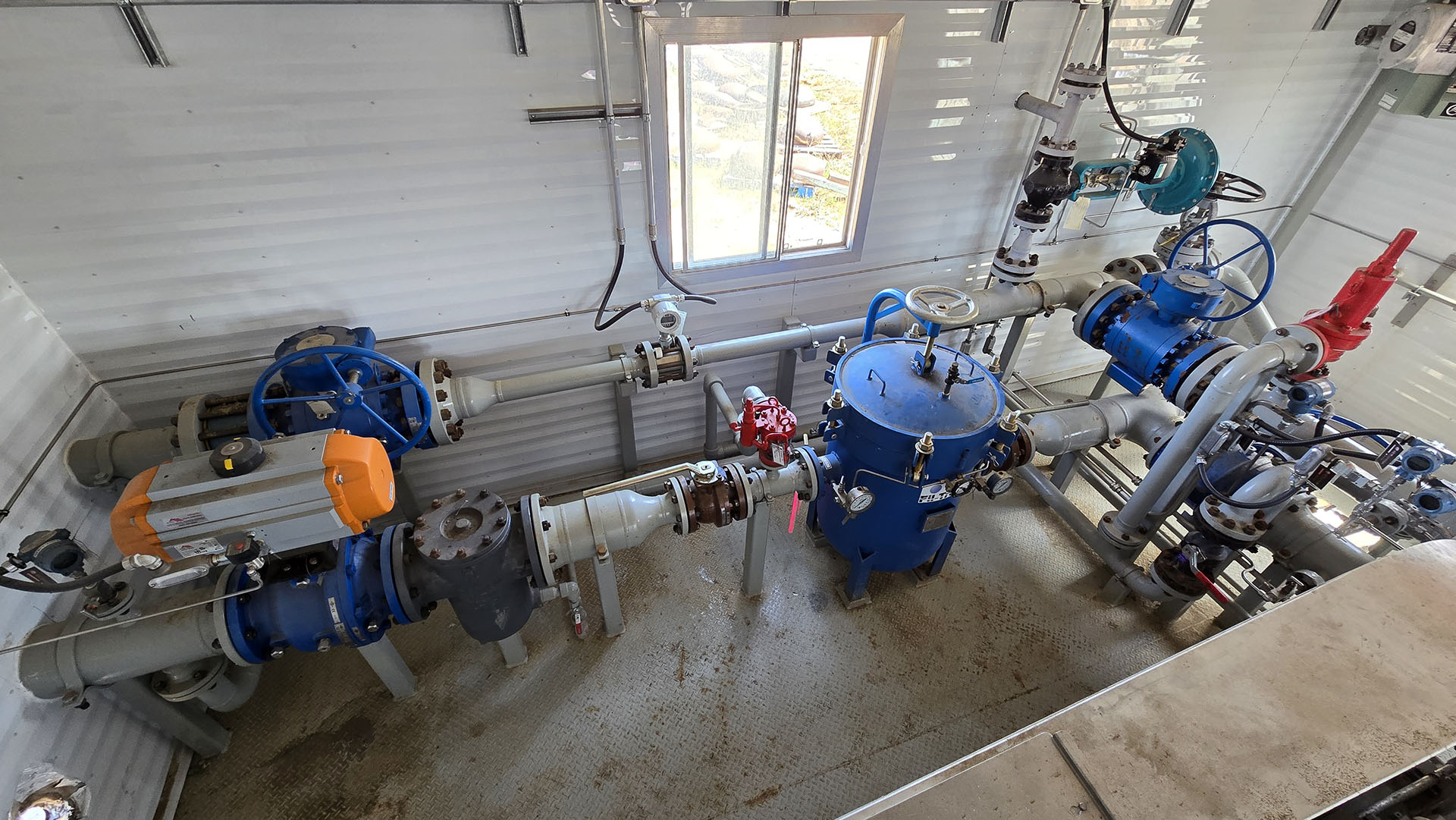

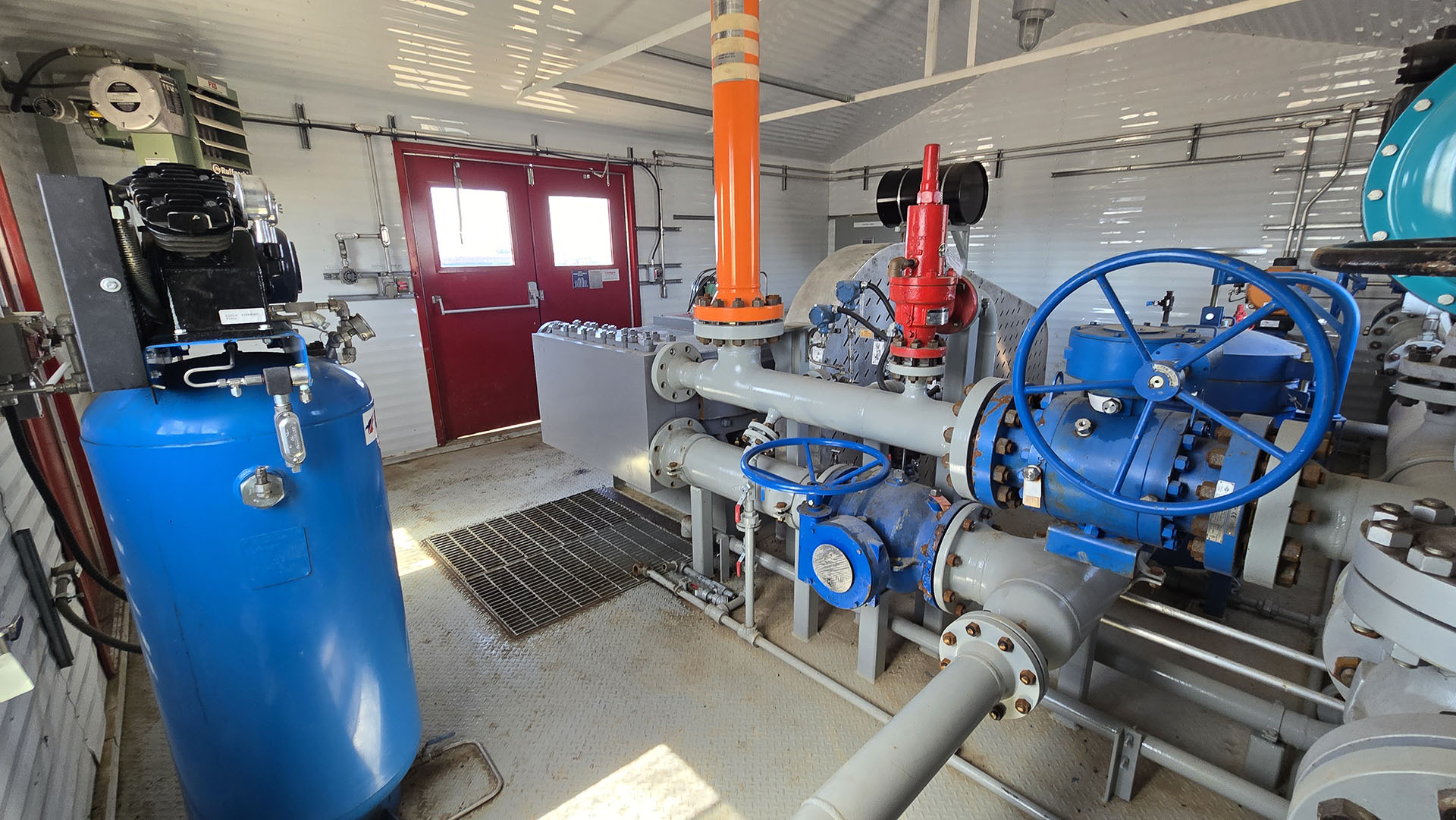

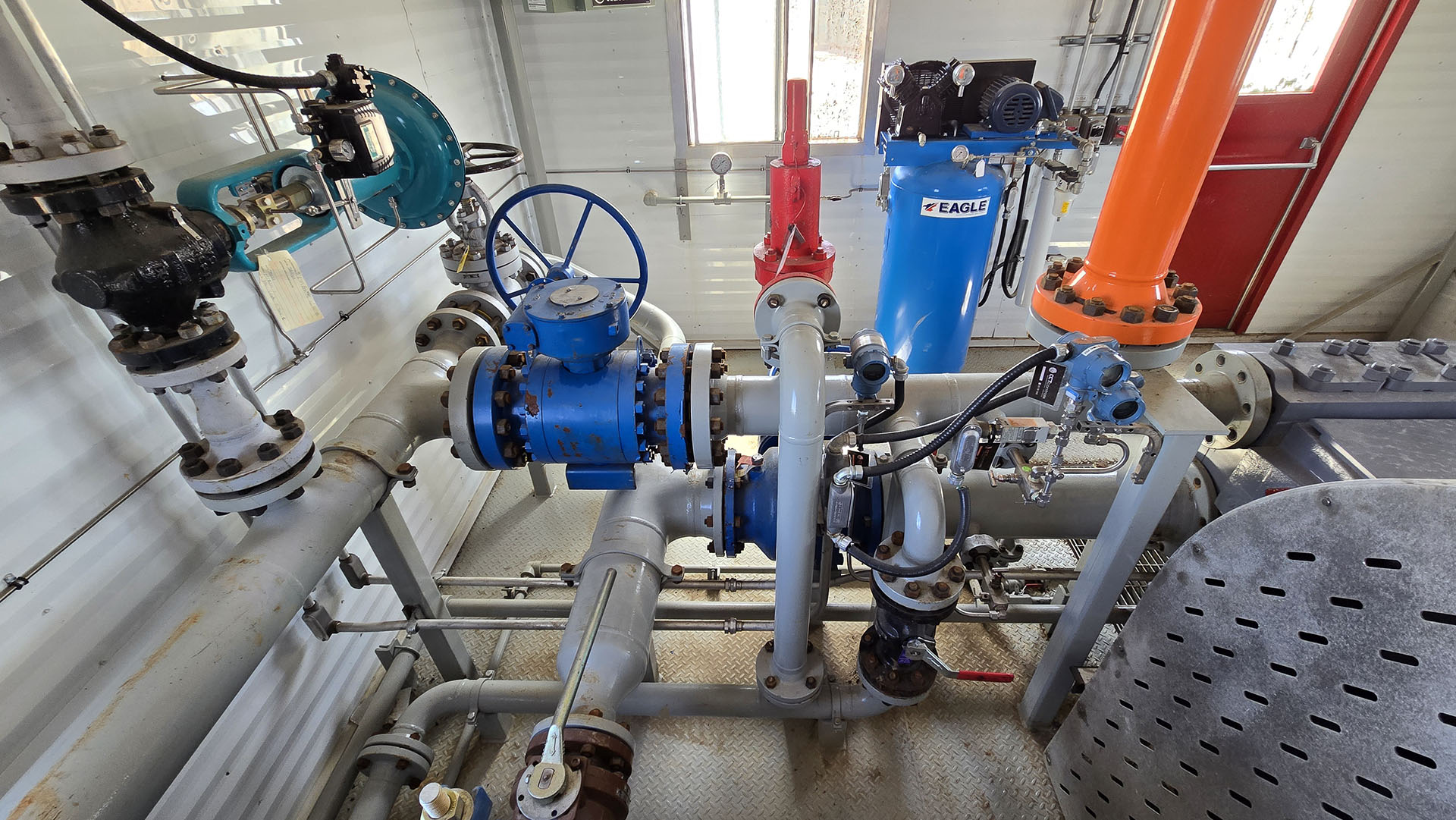

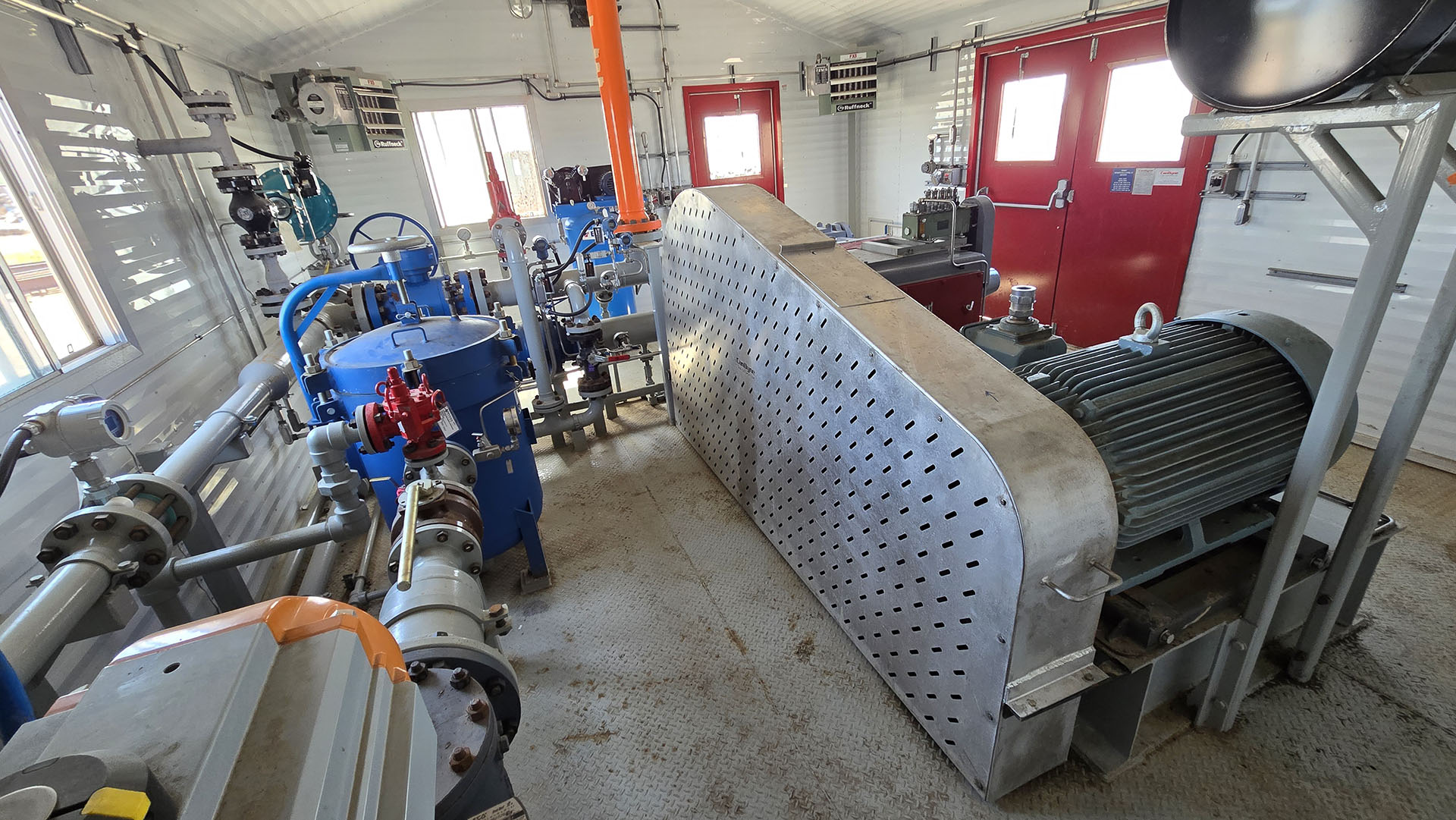

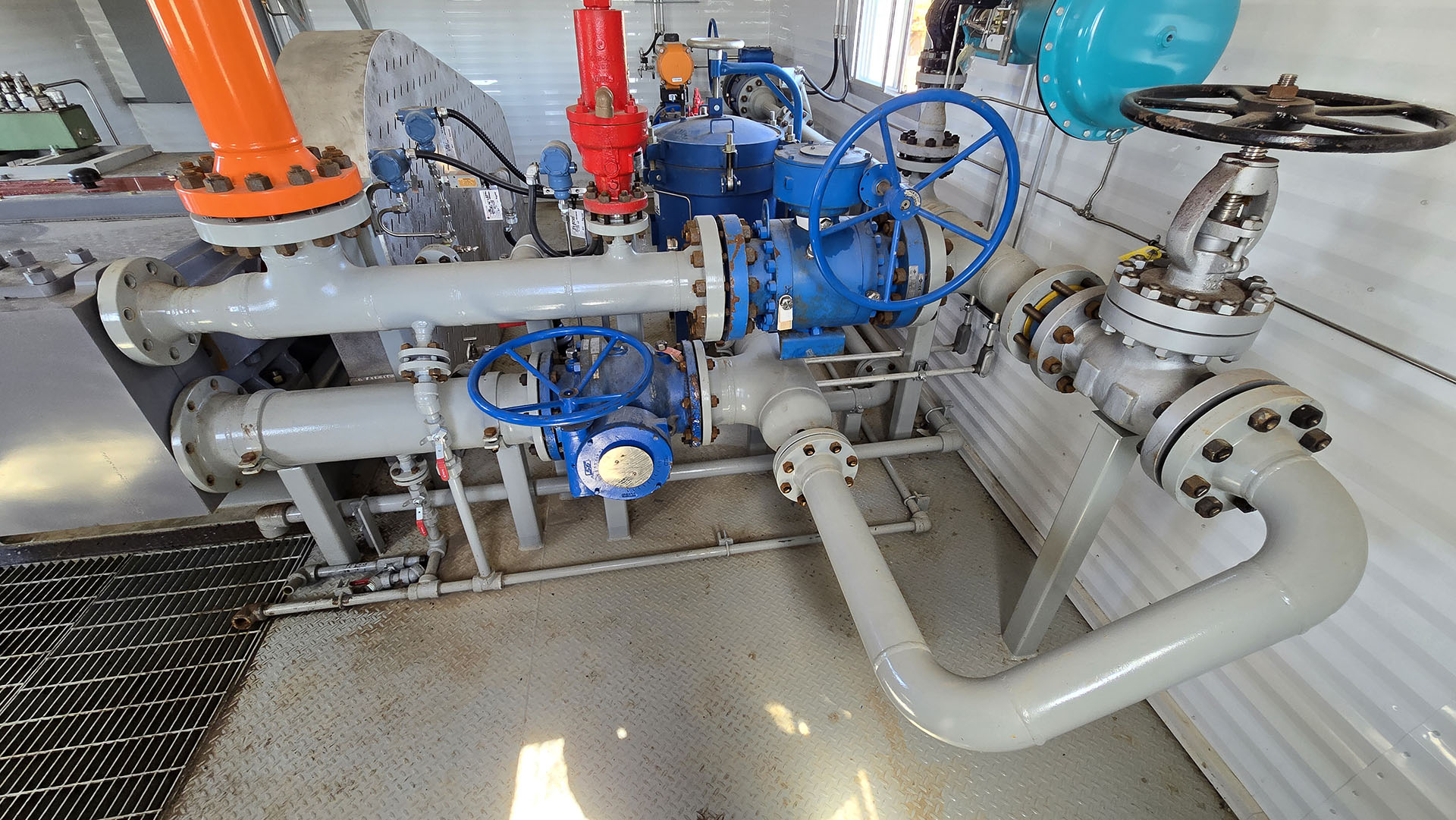

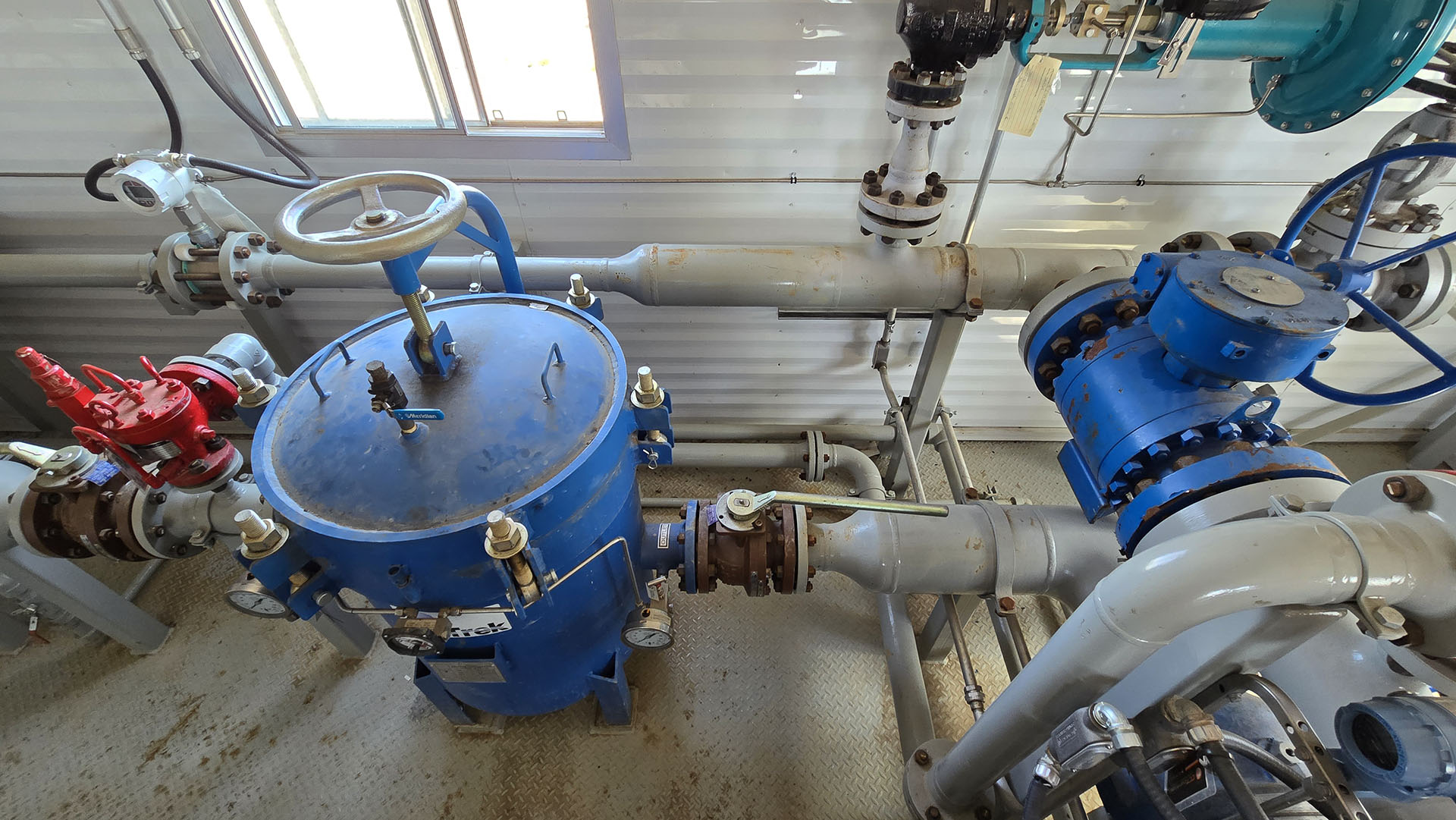

The package includes an enclosed skid-mounted pumping system featuring Allen-Bradley Micrologix PLC controls, pressure, temperature and flow instrumentation, seven-bag filtration, Ruffneck heaters, exhaust fan, ESD buttons, wiring terminated to junction boxes, and sweet service piping configuration.

The layout also provides room for additional equipment, including a charge pump or other application-specific components.

Building and Skid

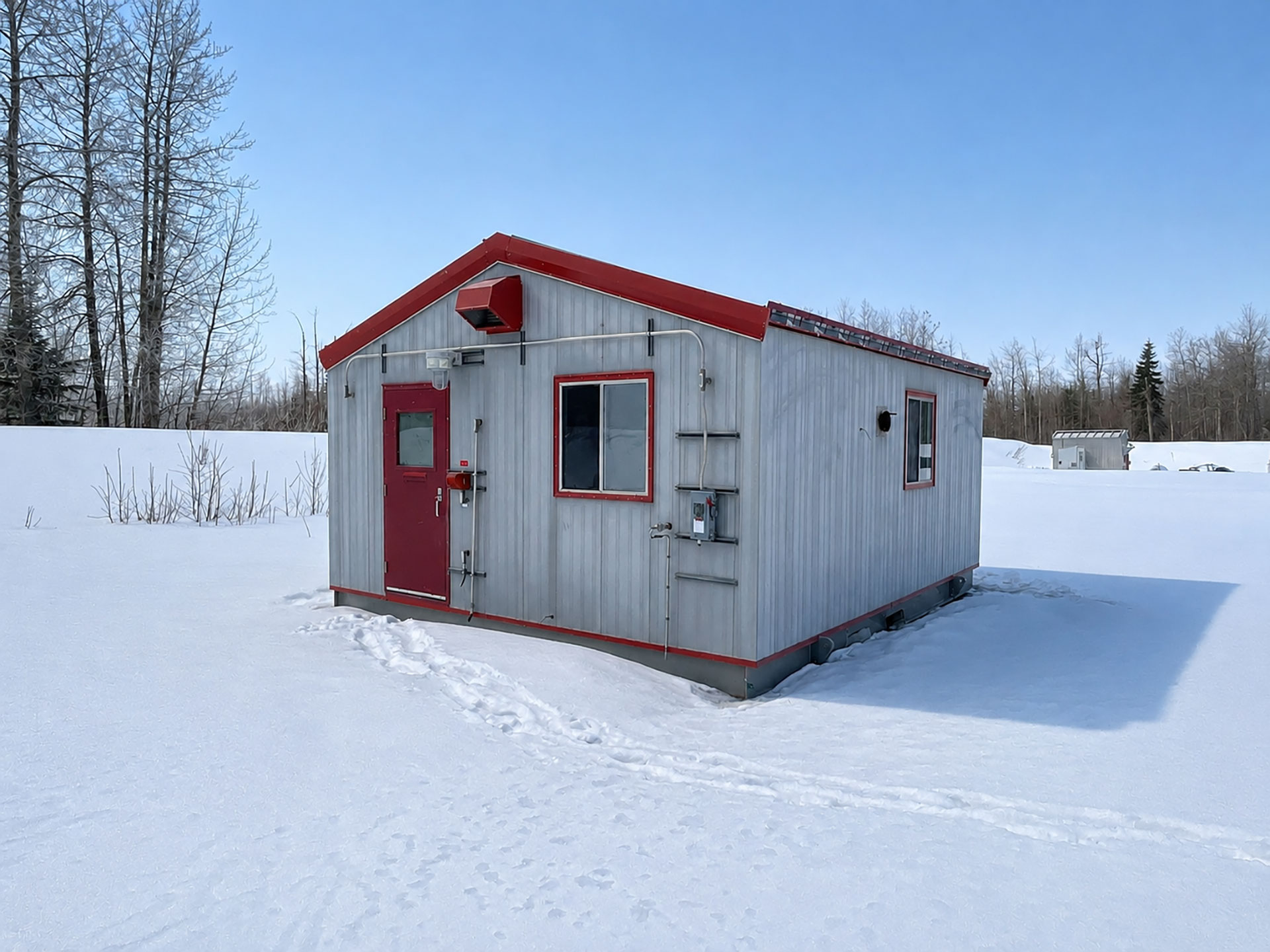

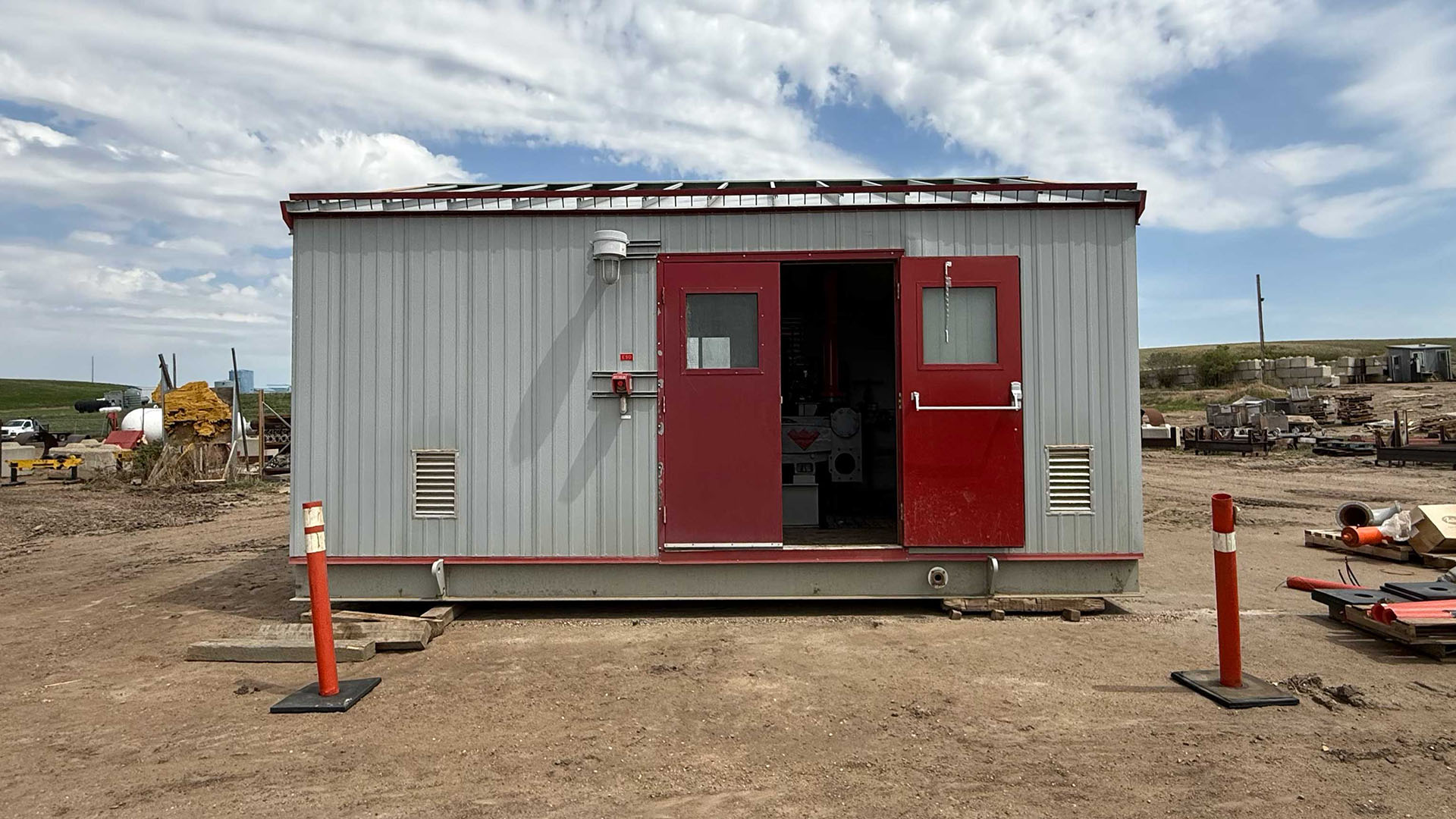

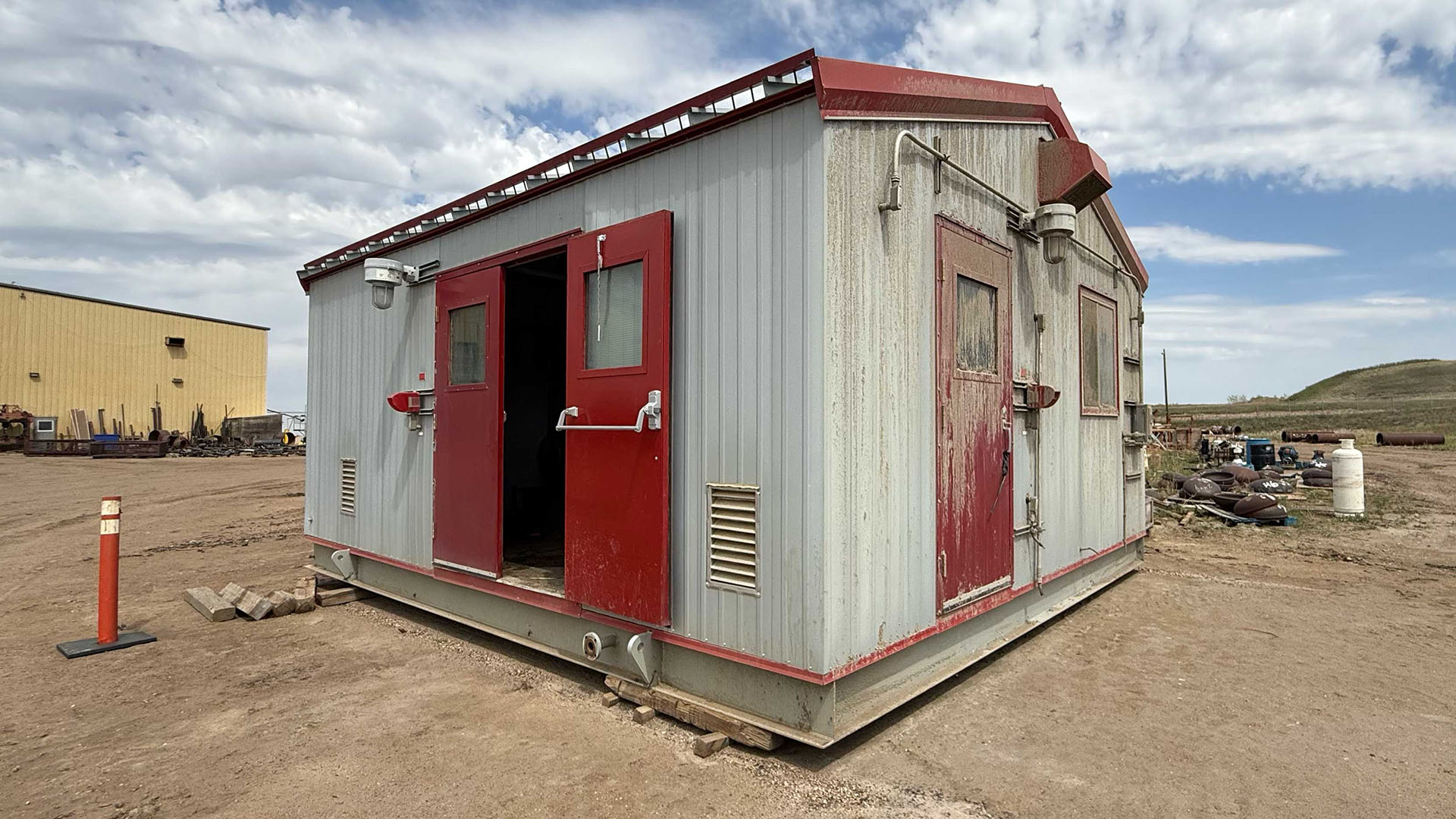

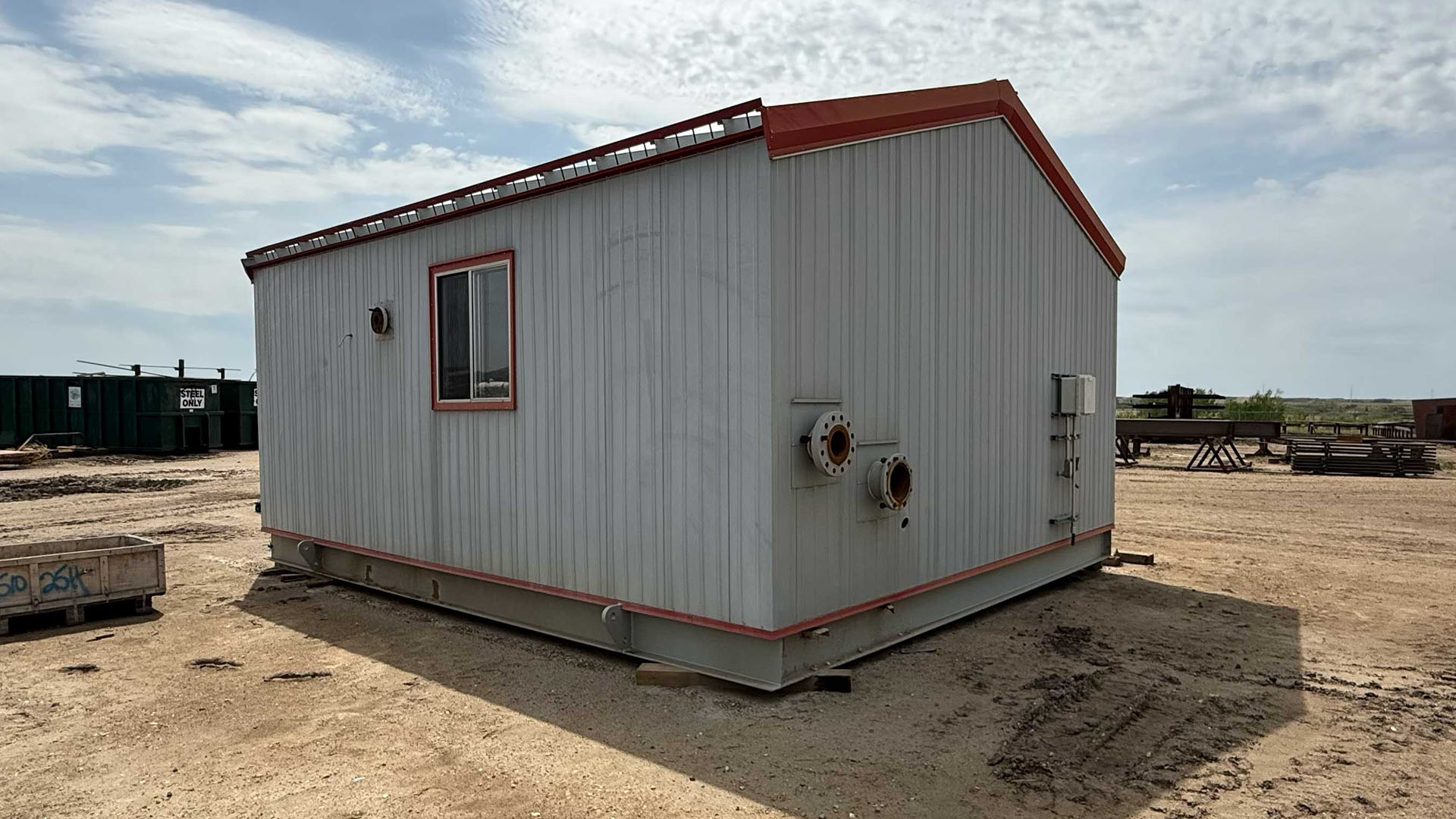

The equipment is housed in an enclosed skid-mounted building measuring approximately 17′ 9″ wide by 21′ 9″ long. The structural skid and building are in good condition and provide a robust platform for field deployment.

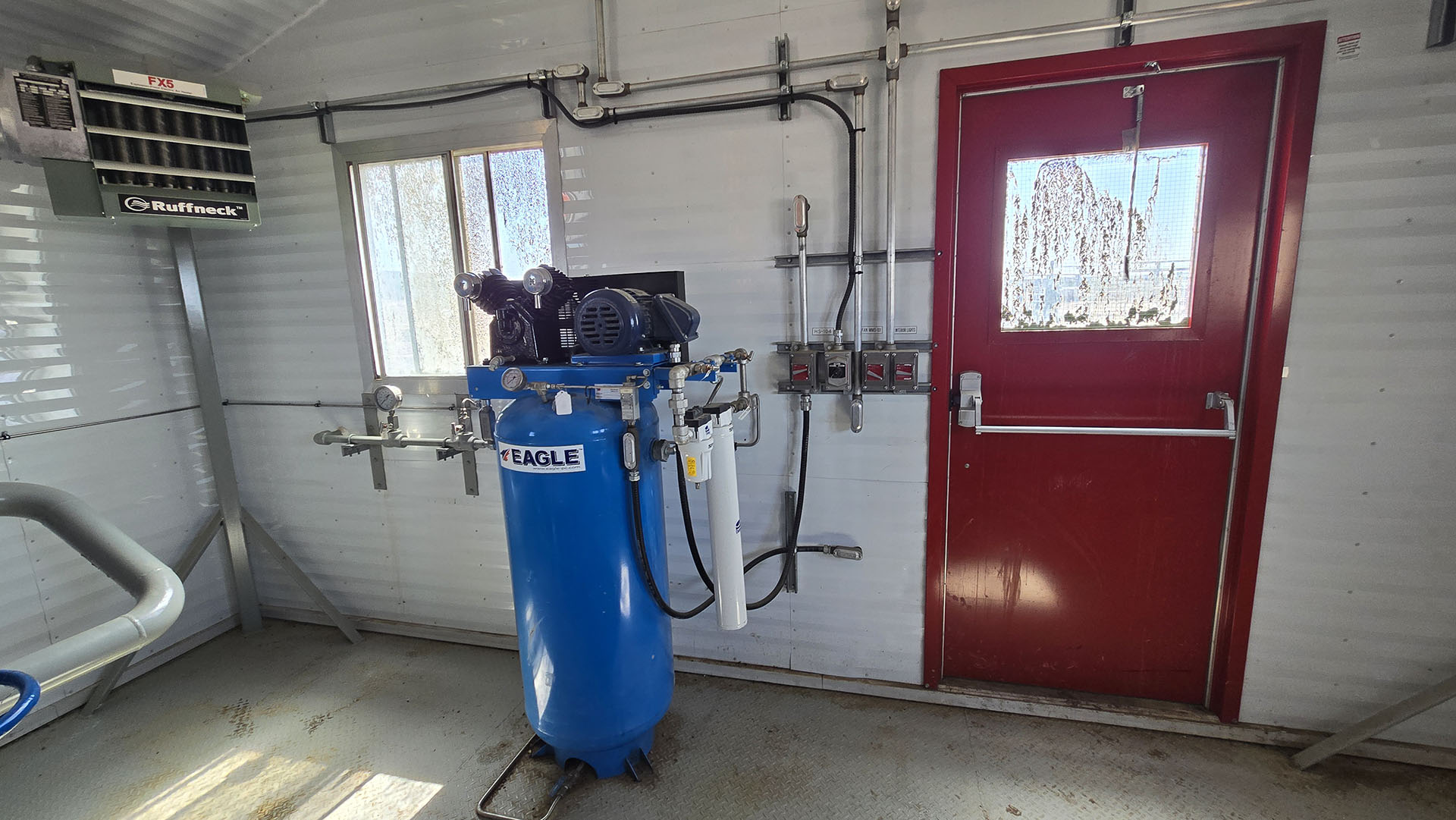

Features include structural steel skid construction, checker plate flooring with integrated sump drainage, single and double personnel doors, windows and ventilation, electric Ruffneck heaters, lighting, electrical infrastructure, and existing control and junction box wiring.

Customization

One of the key advantages of this package is that the major refurbishment work has already been completed while the unit remains positioned where fabrication work can be efficiently performed. Filters, piping, valves, metering, instrumentation, controls, motors, and other process equipment can be incorporated or modified to suit the final application.

Contact Us

The hard work has already been done, the Weatherford W300-L pump has been remanufactured and reinstalled into the package. Whether you need a water injection pump, disposal package, LACT unit, or oil transfer solution, Crusader can deliver the unit as configured or customize it before deployment. Contact us today to discuss this W300 pump package for your project.

403-819-3906
