Never-Used 2 × 2MW (4MW Total) 60Hz 12.47kV Cummins QSV-91 Natural Gas Generator Packages with Paralleling Switchgear – CJV-U569

Description

2MW Cummins QSV-91 Natural Gas Generator Sets with Paralleling Switchgear for Sale

Two (2) never-used 2MW Cummins QSV-91 natural gas generator sets for sale, providing 4MW total generation capacity. These 60Hz, 12.47kV natural gas generator packages are housed in large winterized, sound-attenuated enclosures and include associated equipment, breakers, and a breaker cubicle building with paralleling switchgear.

Each Cummins QSV-91 generator set is rated at 2,000kW, 12.47kV, 3-phase, 4-wire, 60Hz continuous duty. The generator sets were purchased new in December 2019 for a project that was subsequently cancelled and were never placed into service.

Generator Package Specifications

• Manufacturer: Cummins
• Model: QSV-91 / C2000 N6CB
• Quantity: Two (2)
• Output: 2,000 kW each / 4 MW total
• Fuel: Natural Gas
• Frequency: 60 Hz
• Voltage: 12.47 kV
• Electrical: 3-phase, 4-wire
• Rating: Continuous
• Condition: Never used / never placed into service
• Approximate Packaged Enclosure Dimensions: 49’2″ L x 12’8″ W x 13’3″ H each
• Approximate Packaged Dry Weight: 90,000 lbs. each
• Location: Northeastern USA

Winterized & Sound-Attenuated Enclosures

Each generator is housed in a large walk-in, winterized, weather-protected and sound-attenuated enclosure designed for demanding outdoor service. Enclosure features include:

• Mineral-wool insulated walls and roof
• Powder-coated marine-grade aluminum exterior wall and roof panels
• 22-gauge galvanized perforated interior liner
• Two (2) x 5kW space heaters per enclosure
• Heater and thermostat controls
• Controlled ventilation and louvers
• Gas detection
• Smoke and heat detection
• Designed for up to 150 mph wind loading
• Roof designed for 50 lb/ft² snow loading
• Approximately 70 dBA enclosure-only sound attenuation at 23 ft
• Checkered carbon-steel floor with minimum 2″ spill-containment lip around the skid perimeter

Generator Package Scope of Supply

Each generator package includes:

• 105°C rise alternator
• Alternator anti-condensate heater
• PMG excitation
• Engine jacket water heater
• Fuel train with dual solenoids and interstitial leak detection
• Vibration isolators (CMI standard) (non-seismic)
• 15kV isolation switch, unfused
• Expansion bladder tank
• Pressure switch and pressure gauge
• Air separator and air vents
• Thermostatic control valves and balancing valves
• Engine flexible connectors for natural gas, HT & LT circuit supply and return, exhaust outlet, and cooling-system vent lines
• Ground-mounted remote radiator with horizontal cores, 70 dBA at 23 ft
• DC pre-lube pump and heater for standby service / black-start mode
• Oxidation catalyst
• Batteries, racks, cables, and charger
• Lube-oil make-up tank
• Spill containment
• Genset local control system

Additional Included Equipment

• Two (2) mufflers
• Two (2) heat exchangers
• Two (2) coolers
• Two (2) exhaust pipes
• Four (4) exhaust flanges
• Thirteen (13) breakers in original boxes
• One (1) box of miscellaneous parts

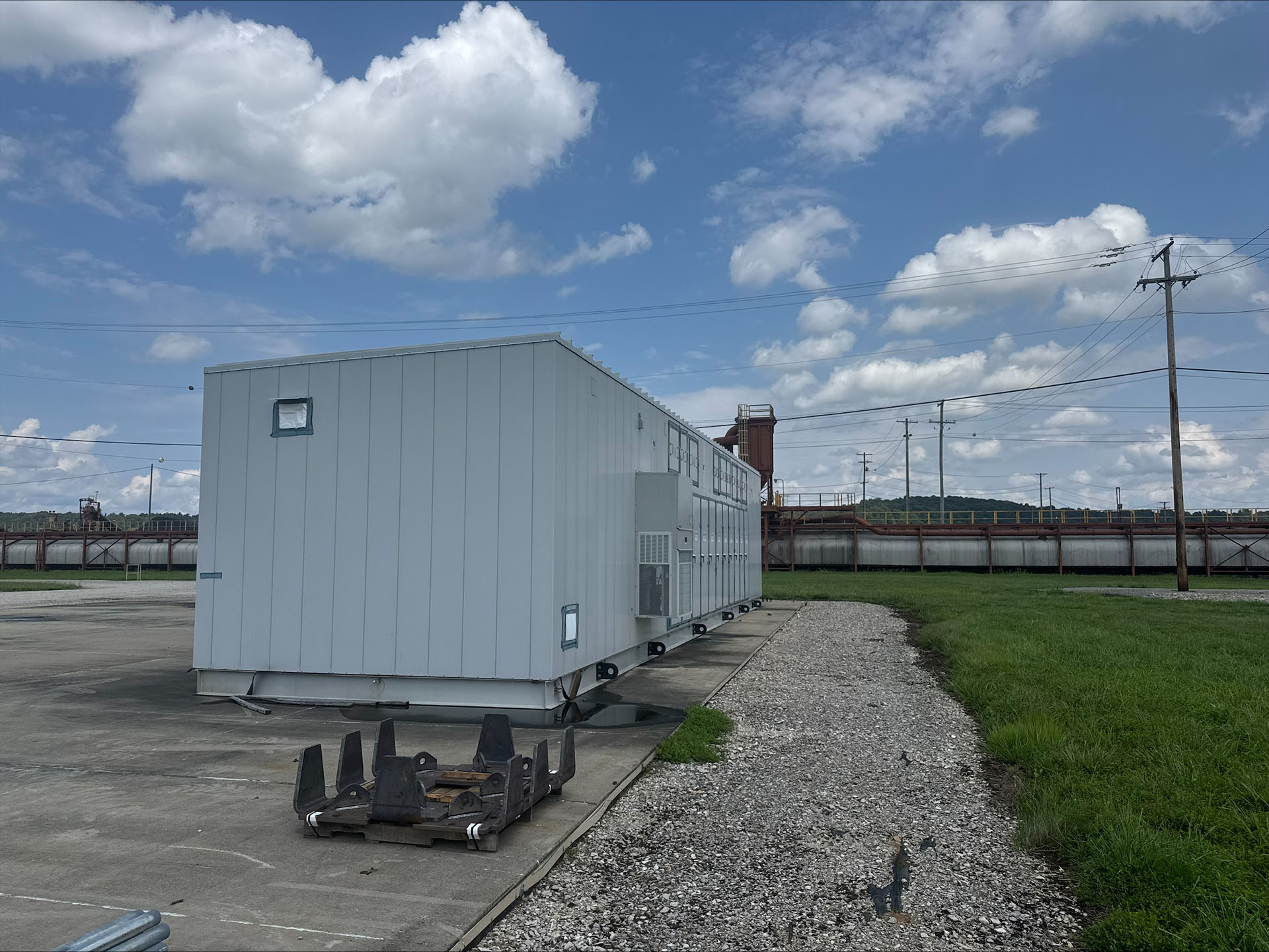

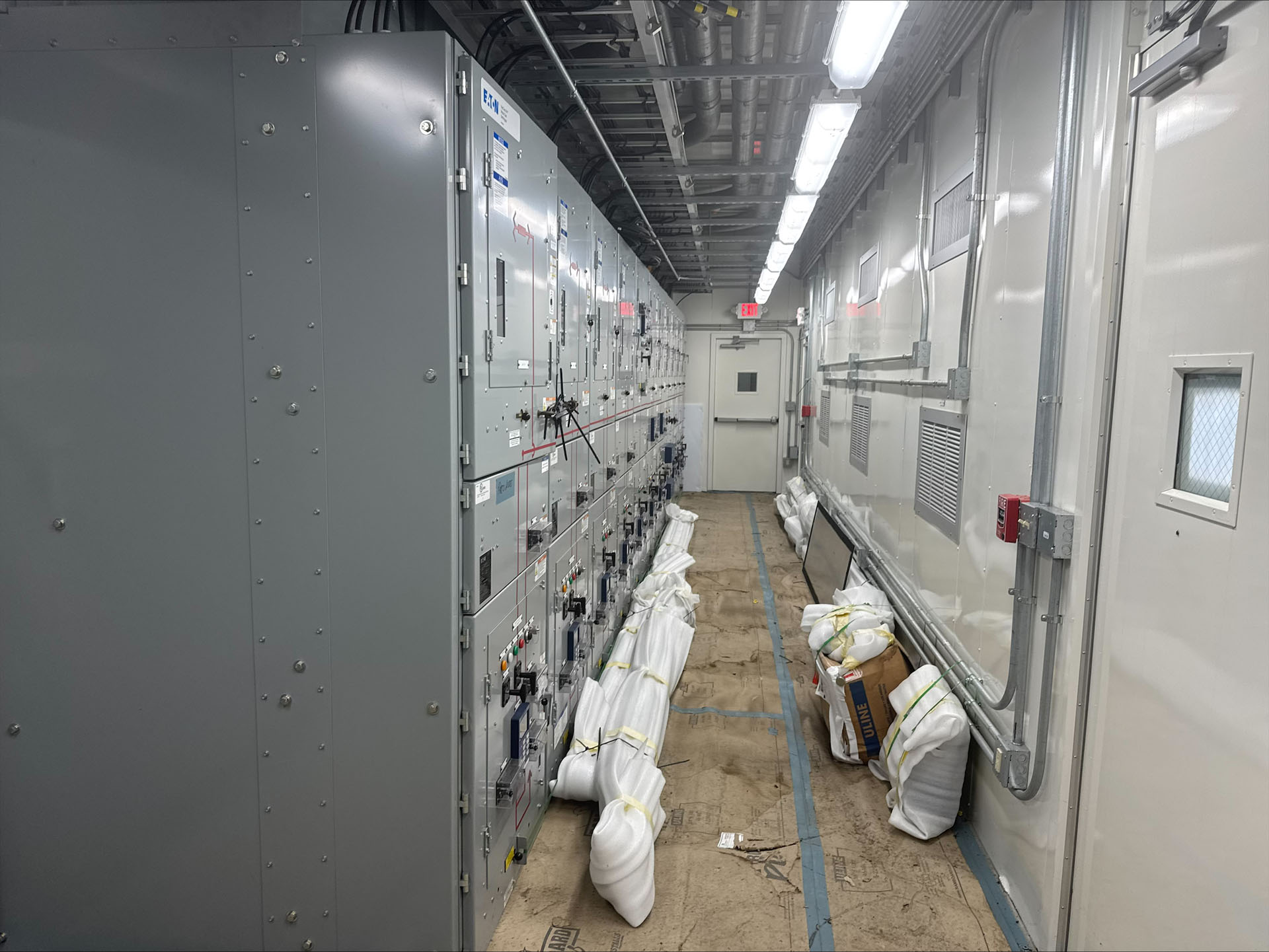

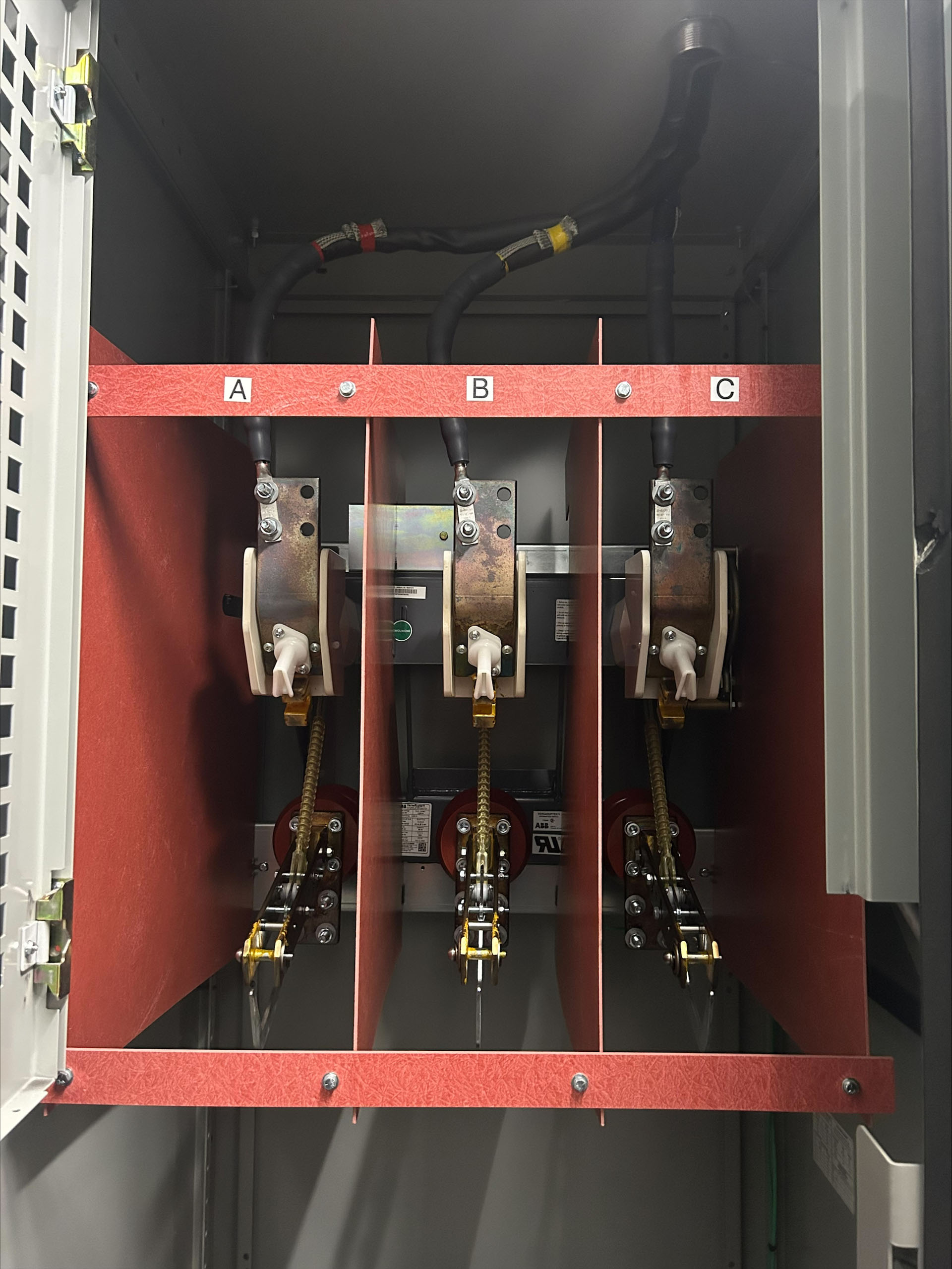

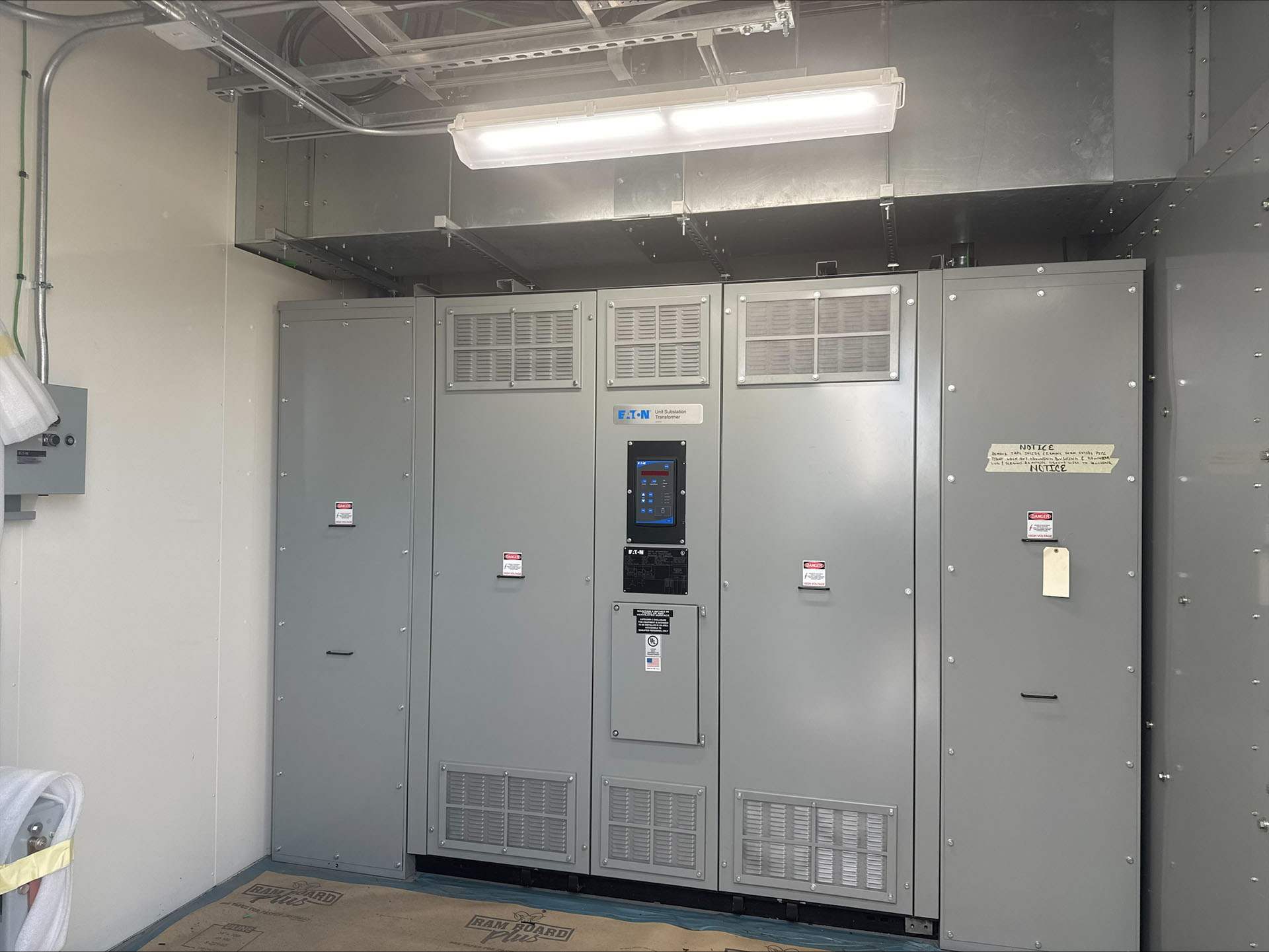

Paralleling Switchgear

The offering also includes a breaker cubicle building with paralleling switchgear, providing a more complete electrical package with the two Cummins QSV-91 generator sets.

• Quantity: One (1) breaker cubicle building with switchgear
• Function: Paralleling switchgear
• Approximate Enclosure Dimensions: 49′ L x 12′ W x 13’4″ H

Condition & Availability

The two Cummins QSV-91 natural gas generator packages were purchased new in December 2019 for an intended project that was subsequently cancelled. The generator sets were never placed into service.

The generator sets, associated equipment, and paralleling switchgear are located in the Northeastern USA.

For Sale: Two (2) x 2MW Cummins QSV-91 natural gas generator sets, providing 4MW total generation capacity, complete with winterized sound-attenuated enclosures, associated equipment and paralleling switchgear. Contact Crusader Joint Ventures for additional technical information, documentation, availability, inspection details, and commercial terms.
